Product Overview

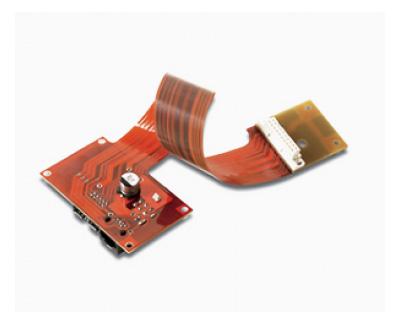

The 2-layer hybrid medical PCB with red solder mask is a high-reliability circuit board specifically designed for internal circuit connections in medical devices. It features a 2-layer structure that combines the stability of a rigid PCB with the flexibility of a flexible circuit, making it suitable for a wide range of medical equipment. This product ensures the safety and stability of medical devices through its precise circuit layout and reliable connection performance.
Product Features
1. High reliability design: Specifically designed for medical equipment, ensuring stable operation in various environments.
2. Soft-hard combined structure: Provides better flexibility and adaptability, suitable for complex internal spaces of medical equipment.
3. Durable substrate: Utilizing FR-4 substrate, it provides excellent electrical insulation performance and mechanical strength.
4. Clear marking: The solder mask process with red oil and white characters facilitates the identification of circuits, enhancing the convenience of maintenance and inspection.
Technical specifications
Number of layers: 2
Raw material: FR-4
Thickness: 1.6mm
Copper thickness: 1OZ (35 microns)
Ink color: red solder mask, white silk screen
Minimum line width/line spacing: Line width: 0.15mm, line spacing: 0.15mm
Solder mask Red
Surface treatment method: Immersion gold plating
Application field
Medical imaging equipment
pacemaker
Medical monitoring equipment
Portable medical equipment
Special production process
1. Precise circuit processing: Utilizing advanced circuit processing technology, achieving a minimum line width and spacing of 0.15mm, meeting the demands of high-precision circuit design.
2. Soft-hard combination process: Through special production processes, effective combination of rigid PCB and flexible circuit is achieved, providing more flexible circuit design solutions.
3. Biocompatible surface treatment: The surface treatment technology meets the biocompatibility standards of the medical industry, ensuring the product can be safely used in a medical environment.
Product Summary
The 2-layer soft-hard combined medical PCB with red solder mask has become an ideal choice for internal circuit connections in medical devices due to its high reliability and precise circuit layout. By utilizing high-quality FR-4 substrate and advanced production processes, our products can meet the stringent requirements for safety and stability in medical equipment. Whether it's in terms of stability, flexibility, or durability, our 2-layer soft-hard combined PCB is a trusted partner in medical device manufacturing.
