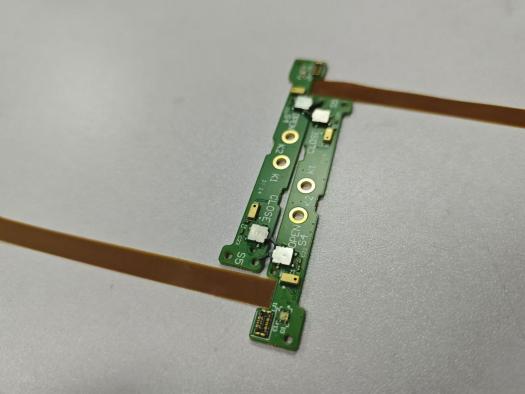

We’re thrilled to showcase a standout rigid-flex PCB custom-built for our U.S. client—engineered for durability and performance, with immersion gold treatment that elevates reliability.
This 3-layer board uses high-quality S1000-2 material (1.4mm thickness) to balance rigidity and flexibility, ideal for dynamic electronic applications. It boasts 1OZ inner copper foil and 2OZ outer copper foil, ensuring strong current-carrying capacity. Finished with green solder mask and white silkscreen for clarity, its immersion gold surface treatment enhances corrosion resistance and signal stability.
Precision is key here: ±0.05mm aperture tolerance, ±0.15mm size error (108.6x65.56mm overall), and a 1-panel-4-pcs configuration for efficient production.
Need a rigid-flex PCB tailored to your specs? Whether it’s custom layers, materials, or surface treatments, our team delivers industry-grade solutions. Contact us today to kick start your order!
