This 12-layer high-speed PCB is built for high-performance computing and critical connectivity. Using Nanya NP-155F material, 1.6mm thickness, 1.5OZ outer copper & 0.5OZ inner copper, green solder mask with white silkscreen, it delivers strong impedance control and stable signal transmission.

As a top-tier data center PCB and AI server PCB, it supports AI accelerator cards, smart network cards, and switch backplanes for cloud computing and AI training. It also serves 400G/800G switches, 5G core networks, industrial control, medical imaging, and automotive ADAS / aerospace applications.

We are a professional multilayer PCB manufacturer supporting quick turn prototype and mass production with strict quality assurance.

Contact us today for your high-speed PCB fabrication and custom project quote!

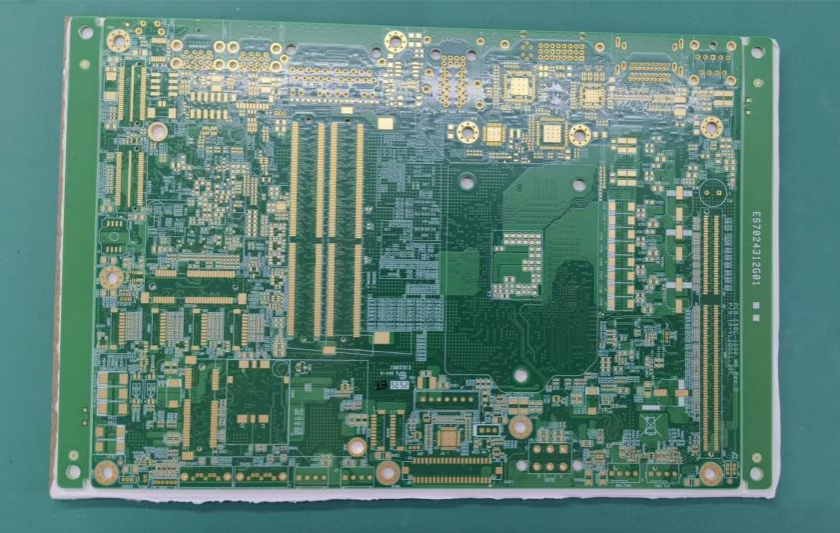

12-Layer High-Speed PCB.png
