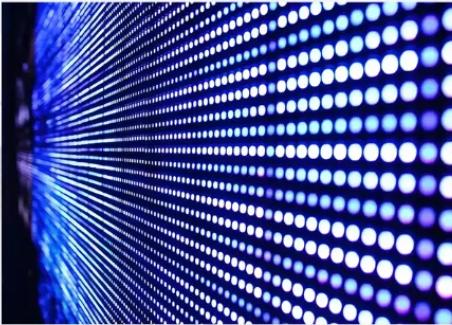

When a star’s concert blazes with crisp visuals, or a skyscraper’s billboard floods the street with vivid ads—those eye-popping LED displays don’t shine alone. The unsung hero? The HDI PCB powering every pixel.
While LED PCB production doesn’t have a wildly complex workflow, nailing the precision for high-def screens is way trickier than making regular boards. These PCBs demand insanely tight wiring: most use 4mil line width and spacing (for inner/outer layers), while ultra-dense models cram gaps down to 3.5mil. For COB LED screens (the sharpest of the bunch), we’re talking 2.5mil gaps—paired with 1OZ outer copper thickness to keep yields high. Mess up even a tiny spec here, and the screen’s clarity fizzles or the circuit fails entirely.
That’s why our team at SHPCB has poured hours and resources into refining these LED light board PCBs. We’ve tweaked production processes again and again, boosting our ability to hit those razor-thin specs consistently.
Need an HDI PCB that keeps your LED screens bright, sharp, and reliable? Hit the top button to share your display’s needs—we’ve got the precision down.
