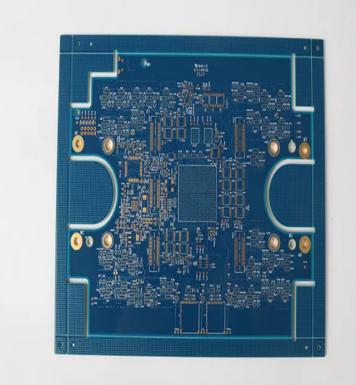

Introduction to 16 layer industrial control test motherboard products
The 16 layer industrial control test motherboard is an essential core component in industrial control systems. They have high performance, high reliability, and flexible scalability, which can meet various complex industrial application requirements. Here is a detailed introduction to our 16 layer industrial control test motherboard:
1. Product Overview
Our 16 layer industrial control test motherboard adopts a multi-layer design, which can support complex circuit layouts and high-density component installations. They are widely used in fields such as industrial automation, robot control, embedded systems, data acquisition, and testing equipment.
2. Technical specifications
Number of layers: 16
Plate thickness: 2.0mm
Board: S1000-2M
Copper thickness: inner 1oz, outer 1.5oz
Minimum line width and spacing: 0.1/0.1mm
Minimum aperture: 0.2
Surface treatment: Sinking gold 3U "
Process key points: impedance control+countersunk hole+resin plug hole
3. Product features
High density interconnection: The 16 layer design provides more wiring layers, supports high-density circuit design, and is suitable for complex industrial control systems.
Excellent electrical performance: Using high-quality materials and advanced manufacturing processes to ensure excellent electrical performance and signal integrity.
Good thermal management: Multi layer design helps dissipate heat and ensures stable operation of equipment under high loads.
High reliability: Strict quality control and testing processes ensure the high reliability and long lifespan of the product.
Flexible design: supports multiple surface treatments and solder mask colors to meet the design needs of different customers.
4. Application Fields
Industrial Automation: Industrial Control Systems, PLCs, DCS, etc
Robot control: robot controller, sensor interface, etc
Embedded systems: various embedded controllers and computing platforms
Data collection and testing: data collection cards, testing equipment, etc
Energy management: smart grid, energy monitoring system, etc
5. Manufacturing process
We use the most advanced manufacturing processes and equipment to ensure that every 16 layer industrial control test motherboard meets strict quality standards. Our process includes:
High precision laser drilling: ensuring the accuracy and consistency of micropores
Automatic Optical Inspection (AOI): Detecting defects and deviations in circuit boards
X-ray inspection (X-Ray): Detecting the internal structure of multi-layer boards to ensure the reliability of interlayer alignment and connections
Electrical testing: Ensure that the electrical performance of each PCB meets the design requirements
6. Quality control
We implement a comprehensive quality control system, from raw material testing to finished product testing, every link undergoes strict quality inspection. We adopt international standard testing methods, such as electrical performance testing, functional testing, environmental testing, etc., to ensure that every PCB meets customer requirements.
summary
Our 16 layer industrial control test motherboard is widely used in various high demand industrial control systems due to its high-density interconnection, excellent electrical performance, good thermal management, and high reliability. We are committed to providing our customers with the highest quality products and services, helping them succeed in the fiercely competitive market.
