Product Overview

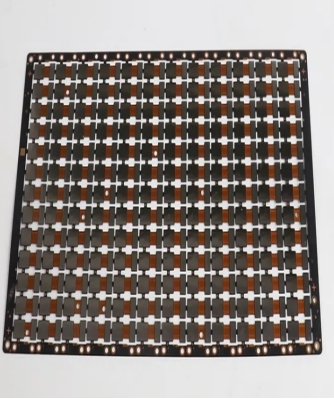

The 4-layer camera rigid-flex circuit board is a high-performance circuit board that integrates flexible and rigid circuit board technologies, specifically designed for cameras and related equipment. This product is suitable for various camera applications, including surveillance cameras, smartphone cameras, automotive cameras, etc., and can meet the needs of high-density connections and complex layouts.
Product Features
1. Integrated software and hardware design
2. Combining the advantages of flexible printed circuit boards (FPC) and rigid printed circuit boards (RPCB), it is capable of achieving complex circuit designs within limited space and adapts to various installation environments.
3. High-density connectivity
4. Adopting high-density wiring technology, it supports smaller spacing and more connections, meeting the signal transmission requirements of high-resolution cameras.
5. Excellent signal integrity
6. The 4-layer structure design effectively reduces signal interference, enhances signal stability and integrity, and ensures rapid transmission of image data.
7. Excellent heat dissipation performance
8. The design incorporates thermal management to effectively dissipate heat, ensuring stable operation of the camera under high load conditions.
9. Flexible shape design
10. Due to the design of the flexible part, the circuit board can be customized according to the shape of the equipment, facilitating installation and wiring in confined spaces.
11. Resistance to vibration and durability
12. Combining flexible and rigid materials, it has good shock resistance and durability, making it suitable for use in various environments.
Technical Specifications
Number of layers: 4
Sheet thickness: 0.8mm
Sheet material: S1000-2 + Panasonic PI
Copper thickness: Inner layer 1 oz, outer layer 1 oz
Minimum line width and spacing: 0.05/0.05mm
Minimum aperture: 0.2
Surface treatment: Immersion gold 2U
Process key point: Precise circuit
Application field
Surveillance system: security surveillance cameras, webcams
Mobile devices: Camera modules for smartphones and tablet computers
Automotive electronics: on-board cameras, ADAS (Advanced Driver Assistance System)
Medical equipment: endoscope, medical imaging equipment
Conclusion
The 4-layer camera PCB, featuring a combination of hardware and software, has become an essential component of modern camera technology due to its excellent performance, flexible design, and high-density connectivity. Whether in the fields of security surveillance, mobile devices, or automotive electronics, this product delivers high-quality image transmission and stable performance. We are committed to providing our customers with high-quality PCB products and excellent services to meet the needs of various industries.
Frequently Asked Questions
1. Firstly, the flexible part is prone to breaking.
Answer: During production, apply glue at the soft and hard connections to solidify them.
2. Due to inconsistent coefficients of thermal expansion, stress will be generated in soft and hard materials after heating, resulting in deformation or cracking of the board,
Answer: During design, special attention should be paid to using materials with the same or similar coefficients of thermal expansion to minimize issues arising from this mismatch.
3. Do you produce the entire process of your soft-hard combination boards in-house?
Answer: Yes
4. Can you make HDI boards with both rigid and flexible circuits?
Answer: Yes, we can produce a 18-layer 6-level hybrid board combining both rigid and flexible circuits.
5. Is the delivery time for your soft-hard combination boards fast?
Answer: For regular sample delivery, we usually deliver within 2 weeks after EQ confirmation, and for HDI samples, it takes 3 weeks
