Product Overview

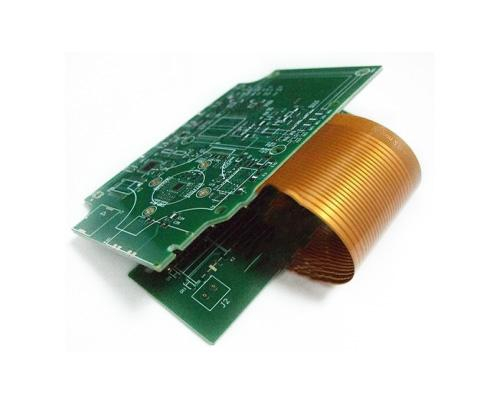

The 6-layer rigid-flex drive arm connection PCB is a high-performance circuit board specifically designed for connecting at the joints of industrial robotic arms. It adopts a 6-layer structure, combining the stability of rigid PCBs with the flexibility of flexible circuits, making it suitable for various industrial automation equipment. This product ensures efficient and stable operation of the robotic arm with its precise circuit layout and reliable connection performance.
Product Features
1. Multi-layer circuit design: The 6-layer structure provides more wiring space to fulfill complex circuit design requirements.
2. Soft-hard combined structure: Provides better flexibility and adaptability, suitable for complex spaces at the joints of robotic arms.
3. Durable substrate: Utilizing FR-4 substrate, it provides excellent electrical insulation performance and mechanical strength.
4. Clear marking: The solder mask process with green oil and white characters facilitates the identification of circuits, enhancing the convenience of maintenance and inspection.
5. High reliability connection: Suitable for high-frequency connection requirements at the joints of robotic arms, ensuring the stability of data transmission.
Technical specifications
Number of layers: 6
Raw material: FR-4
Thickness: 2.0mm
Copper thickness: 1 ounce (35 microns)
Ink color: Green solder mask, white silk screen
Minimum line width/line spacing: Line width: 0.1mm, line spacing: 0.1mm
Solder mask：Green
Surface treatment method: Immersion gold plating
Application field
Industrial automation robotic arm
Robot joint connection
Precision machinery control system
Electronic control unit for heavy machinery
Automated assembly line
Special production process
1. High-precision multilayer lamination technology: ensures precise alignment and structural stability of multilayer circuit boards.
2. Precise circuit processing: Utilizing advanced circuit processing technology, achieving a minimum line width and spacing of 0.1mm, meeting the demands of high-precision circuit design.
3. Soft-hard combination process: Through special production processes, effective combination of rigid PCB and flexible circuits is achieved, providing more flexible circuit design solutions.
4. High wear-resistant surface treatment: Surface treatment technology enhances the wear resistance and oxidation resistance of circuit boards, making them suitable for high-load and high-frequency robotic arm applications.
Product summary
The 6-layer PCB with a combination of rigid and flexible drive arm connections stands out as an ideal choice for joint connections in industrial robotic arms, thanks to its multi-layer circuit design and hybrid structure. By utilizing high-quality FR-4 substrate and advanced production techniques, our products meet the stringent requirements for stability and reliability demanded by industrial automation equipment. Whether it's stability, flexibility, or durability, our 6-layer PCB with a combination of rigid and flexible structures is your trusted partner in the field of industrial automation.
