Product Overview

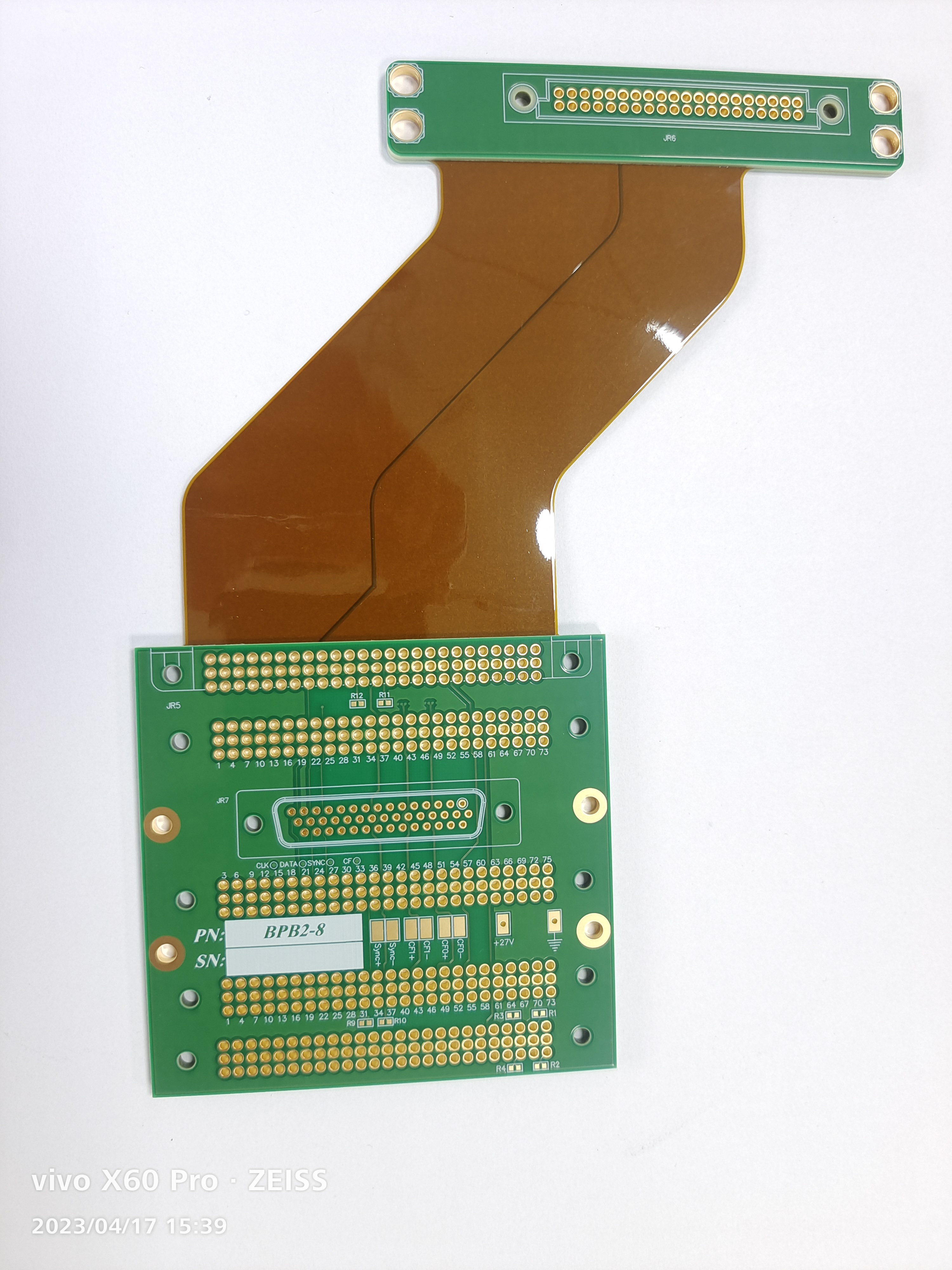

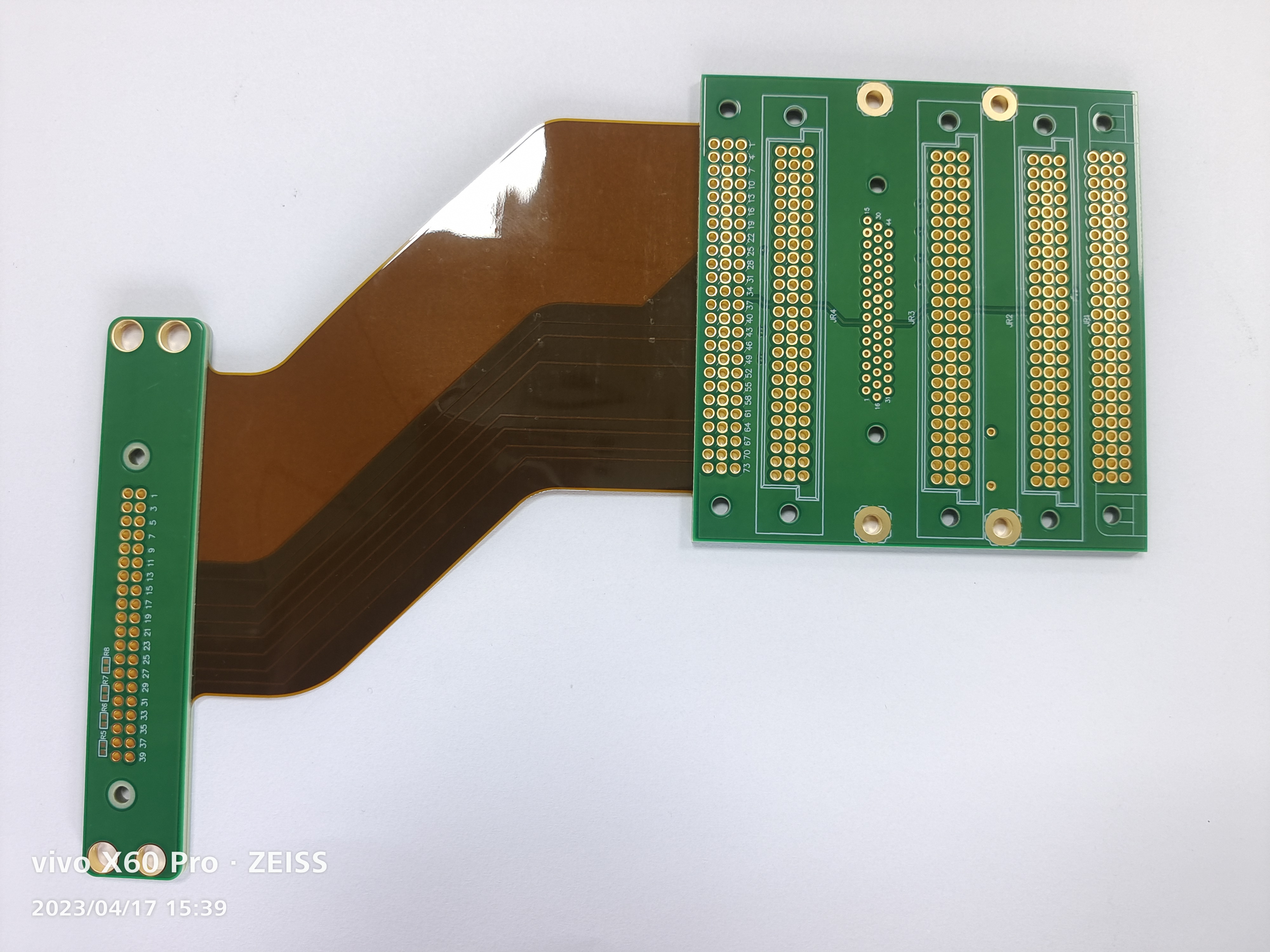

The 8-layer gold-plated flex-rigid combination PCB is a high-density multi-layer printed circuit board manufactured using advanced soft hard combination technology. It combines the strength of a hard board with the flexibility of a soft board, making it suitable for electronic devices that require complex connections and space utilization. This PCB is an ideal choice for high-end electronic products due to its excellent performance and flexibility.
Product Features
1. Soft hard combination technology: Combining the rigidity of the hard board with the flexibility of the soft board to provide more flexible circuit design.
2. 8 layers structure design: Provides more wiring layers to effectively reduce signal interference and improve circuit performance.
3. Gold immersion surface treatment: improves welding reliability and enhances the corrosion resistance of circuit boards.
4. Fine circuit design: Achieve smaller component spacing and improve the space utilization of the circuit board.
5. High reliability: Selecting high-quality raw materials to ensure stability and reliability in complex environments.
Technical specifications and parameters
parameter | description |
number of layers | 8 |
raw materials | High Tg halogen-free FR-4 epoxy resin glass fiber substrate, combined with FPC soft board material |
thickness | flex board 1.6mm, rigid board 0.2mm |
copper thickness | 1 ounce/35 microns |
| ink color | Green, transparent (soft board) |
Minimum line width/line spacing | Line width: 0.1mm, line spacing: 0.1mm |
Surface treatment method | gold immersion |
Application field
1. High end smartphones
2. Wearable devices
3. Flexible display screen
4. Aerospace electronic equipment
5. Industrial control system
The special production process adopted
Laser drilling technology: ensuring drilling accuracy and improving the reliability of PCB.
Laminated technology: ensuring the strength and flatness of the combination of soft and hard boards.
Automated production line: Improve consistency in production efficiency and product quality.
Sinking gold technology: enhances weldability, corrosion resistance, conductivity, stability, and beautifies the appearance.
Product Summary
The 8-layer gold-plated flex-rigid combination PCB has become an indispensable component in high-end electronic products due to its flex-rigidcombination technology, 8-layer structural design, gold-plated surface treatment, fine circuit design, and high reliability. It not only meets the demand for high-performance circuit boards, but also ensures product quality and performance through special production processes. This PCB is a reflection of technological progress in the field of electronic manufacturing, providing a solid foundation for the stable operation and performance improvement of high-end electronic products.
