Product Overview

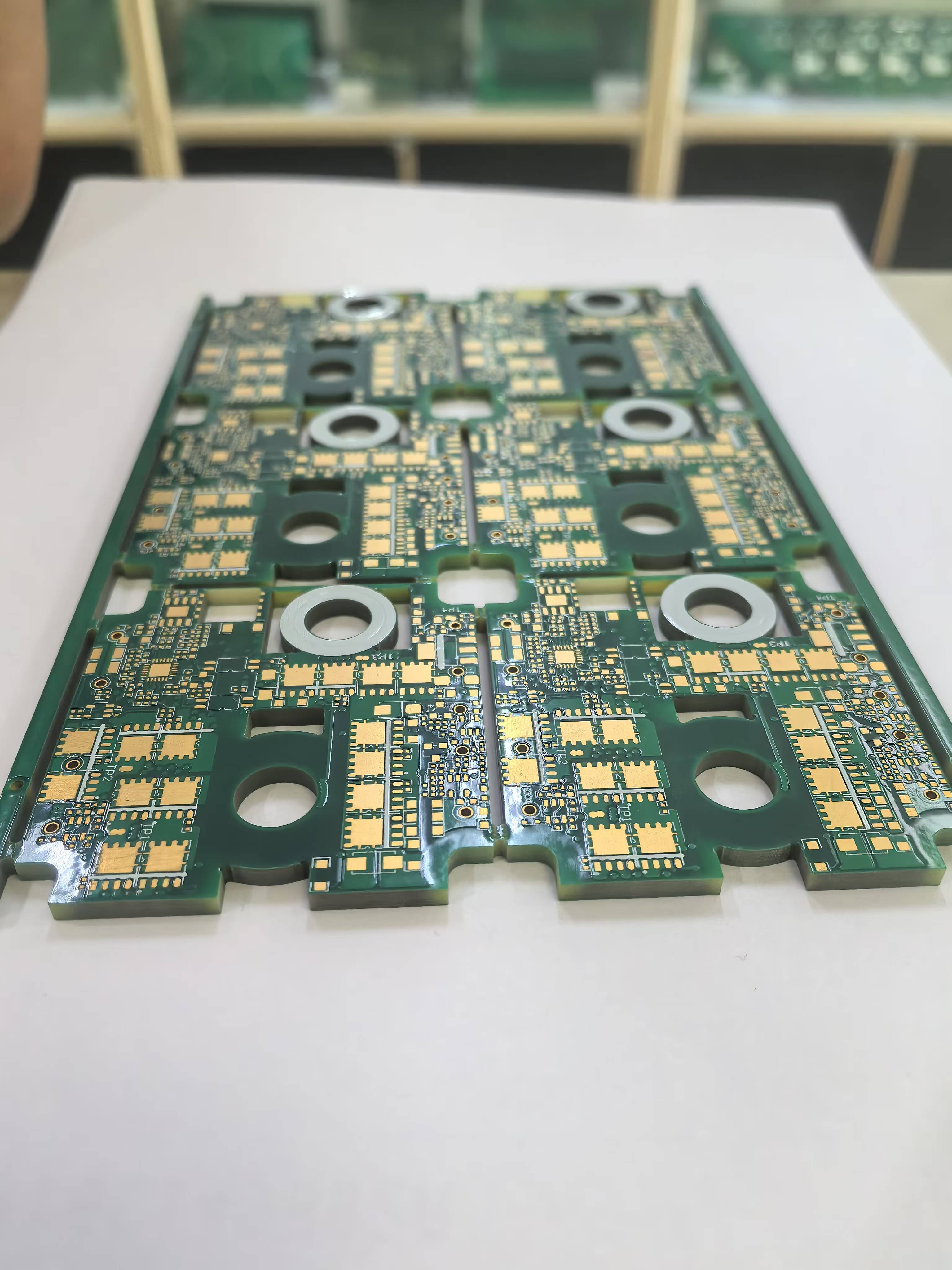

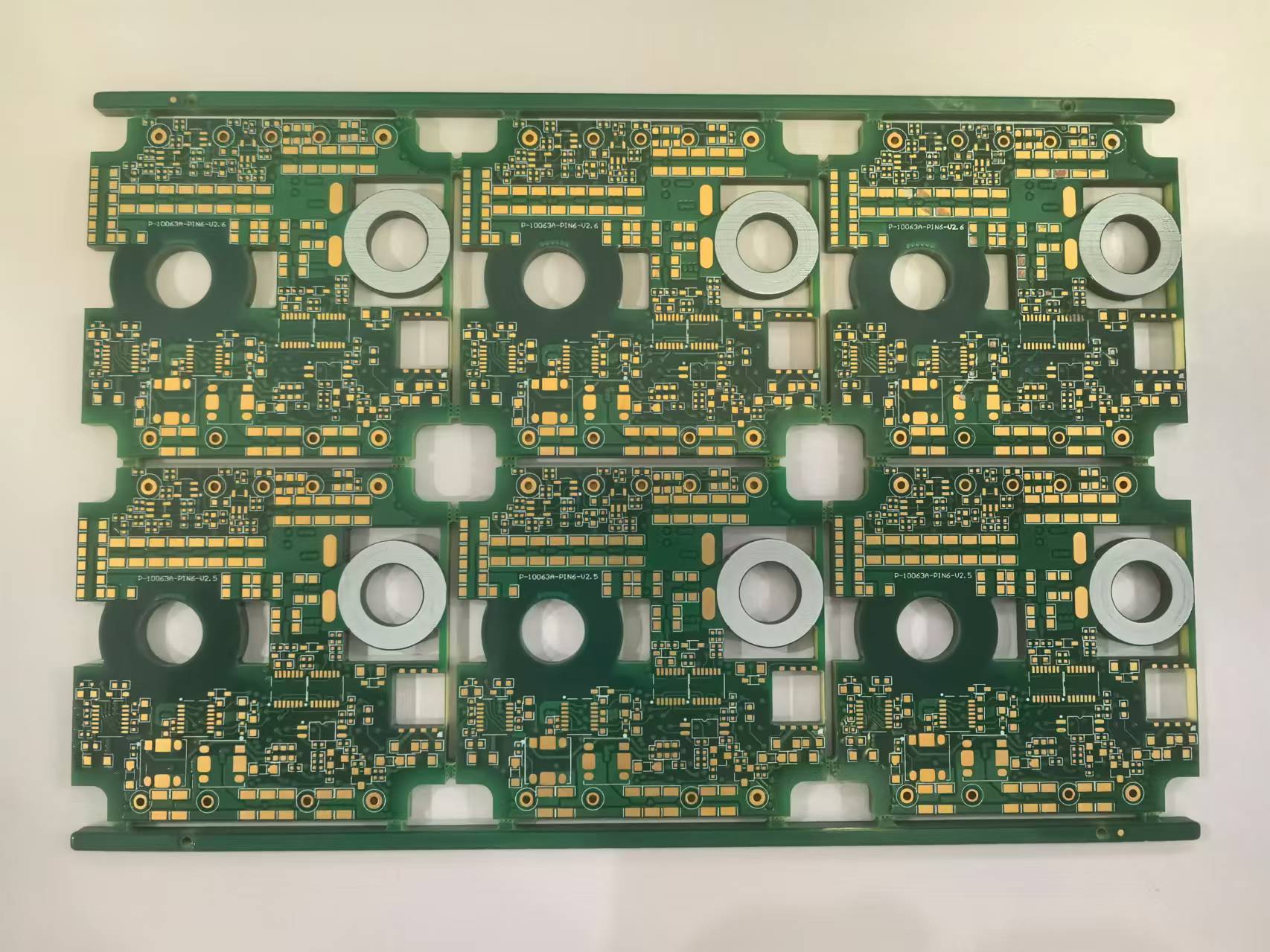

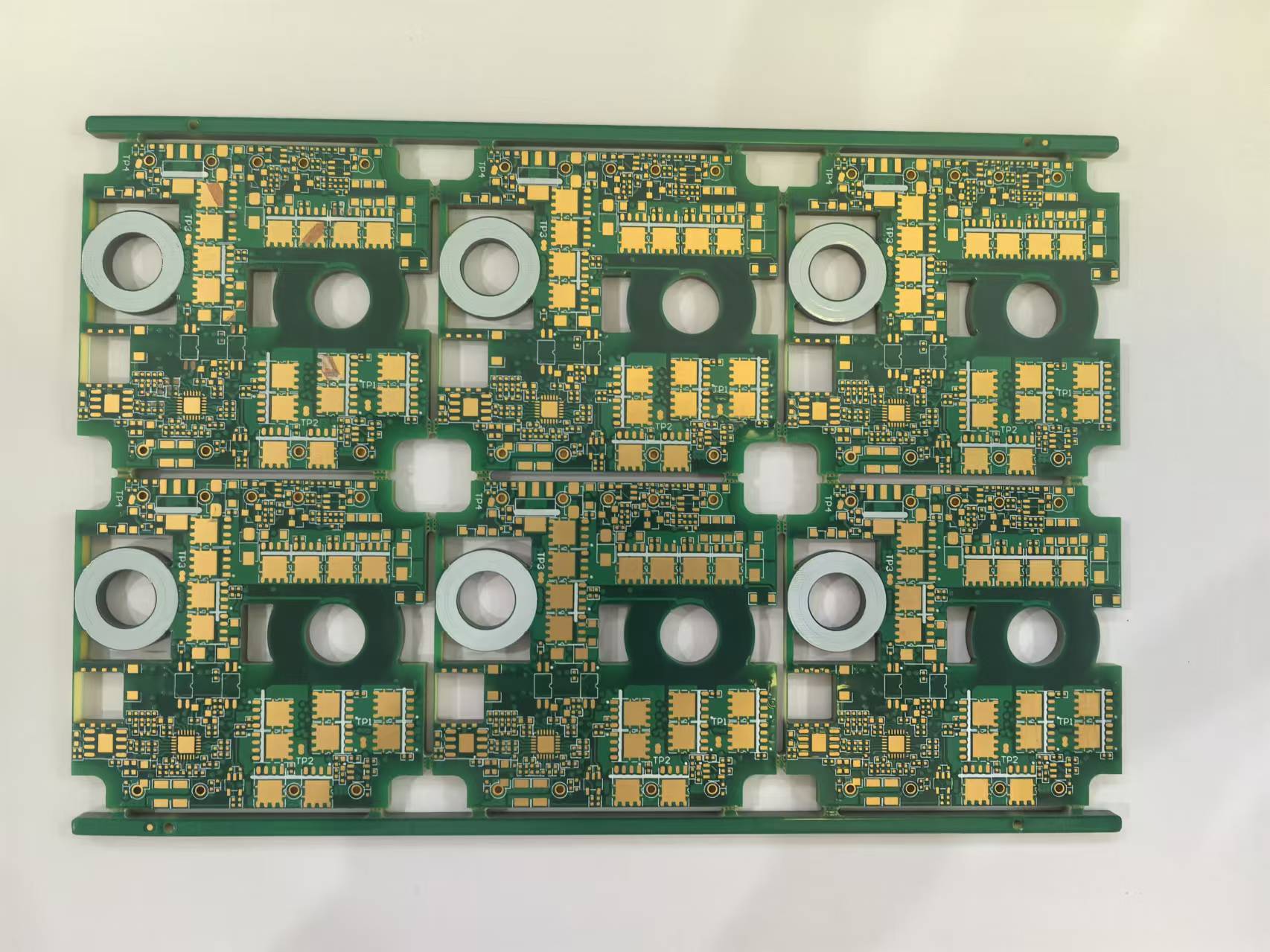

A 12 layer thick copper power PCB (printed circuit board) is a high-performance circuit board designed specifically for high-power and high-frequency applications. Its multi-layer structure and thick copper layer can effectively reduce resistance and heat, improve power efficiency and stability.
Product Features
1. Multi layer design: Adopting a 12 layer structure, it can achieve complex circuit design, provide higher electrical performance and better signal integrity.
2. Thick copper layer: Copper thickness is usually 3 oz (about 105 μ m) or higher, capable of carrying larger currents and suitable for high-power applications.
3. Excellent heat dissipation performance: Thick copper layer helps to dissipate heat quickly, reduce circuit board temperature, and extend product life.
4. High frequency performance: Suitable for high-frequency signal transmission, reducing signal attenuation and crosstalk, ensuring signal stability.
5. Durability: Made of high-quality materials with good corrosion resistance and oxidation resistance, suitable for various environmental conditions.
Application field
Power Management: Suitable for power management systems such as switch mode power supplies and DC-DC converters.
Industrial equipment: widely used in fields such as industrial control and automation equipment.
Communication equipment: Suitable for high-frequency communication devices such as base stations and communication modules.
Medical equipment: Provide stable power support in medical instruments to ensure the reliability of the equipment.
Technical Specifications
Number of floors: 12
Copper thickness: 4 oz inside and outside
Plate thickness: 4.0mm
Plate: FR-4 SY1000-2
Solder mask color: green, oil, white letters
Minimum aperture: 0.3 mm
Minimum line width: 0.2mm
Surface treatment: Sinking gold 2U ''
production process
1. Design phase: Use professional PCB design software for circuit design and layout.
2. Material selection: Choose the appropriate substrate and copper thickness according to customer needs.
3. Manufacturing stage: Performing processes such as photolithography, etching, drilling, and lamination.
4. Testing phase: Conduct electrical and reliability testing to ensure product quality.
5. Delivery phase: After completion, packaging and shipping are carried out to ensure the safe delivery of the product to the customer's hands.
Conclusion
The 12 layer thick copper power PCB circuit board is an ideal choice for high-performance power solutions, suitable for various high-power and high-frequency applications. With its superior electrical performance and heat dissipation capability, it can meet the strict requirements of modern electronic devices for power supply.
