2-layer Automotive LED Indicator PCB

Product Overview

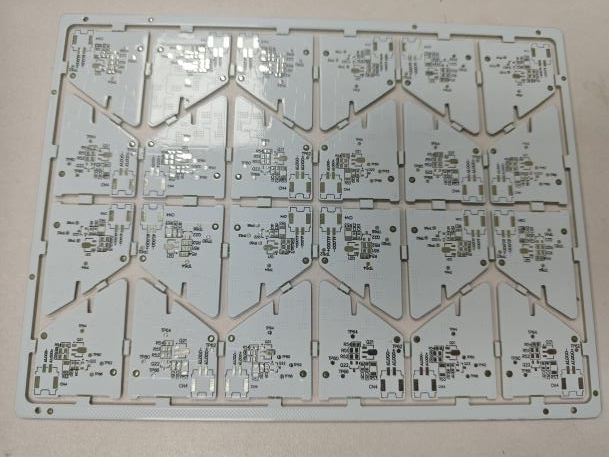

The 2-layer automotive LED turn signal PCB is a printed circuit board designed specifically for automotive turn signal systems. It adopts high-performance SY-1141 substrate and lead-free tin spraying surface treatment process, ensuring good electrical performance and reliability. This product has excellent conductivity and heat dissipation performance, which can meet the strict requirements of stability and durability for automotive turn signal systems

Product Features

1. High conductivity: High quality copper foil is used to ensure efficient and stable current transmission, improving the brightness and response speed of LED lights

2. Excellent heat dissipation performance: SY-1141 substrate has good heat dissipation performance, which can effectively dissipate the heat generated by LED lights and extend the product's service life

3. High reliability: The lead-free tin spraying surface treatment process provides good oxidation resistance and corrosion resistance, ensuring stability in various environments

4. Fine solder mask process: The white solder mask and black silkscreen layer not only looks beautiful, but also effectively protects the PCB surface, preventing short circuits and corrosion

5. High precision aperture: The aperture is 0.2mm, ensuring precise installation and good electrical connection of the LED light

Technical specifications and parameters

Application field

Automotive turn signal indicator system: an LED indicator system used for the front and rear turn signals of automobiles, providing stable and reliable current transmission and heat dissipation performance

Automotive lighting system: PCB suitable for other lighting equipment in automobiles, such as brake lights, fog lights, etc

Automotive electronic devices: PCBs that can be used for other electronic devices in automobiles, such as in car displays, navigation systems, etc

Special production process

1. Lead free tin spraying process: Adopting an environmentally friendly lead-free tin spraying process that meets environmental requirements and provides good oxidation resistance and corrosion resistance

2. High precision drilling technology: ensuring an accuracy of 0.2mm in aperture, meeting the precise installation and good electrical connection requirements of LED lights

3. Fine solder mask process: High quality white solder mask and black silkscreen are used to ensure the beauty and functionality of the solder mask layer

4. Strict quality control: From raw material procurement to production process, strictly control product quality to ensure product reliability and stability

Product Summary

The 2-layer automotive LED turn signal PCB is an ideal choice for automotive turn signal systems due to its high conductivity, excellent heat dissipation performance, high reliability, and fine craftsmanship. It can not only meet the strict requirements for stability and durability of the car turn signal system, but also work stably in various environments for a long time, providing reliable guarantee for the car's lighting system
