Product Overview

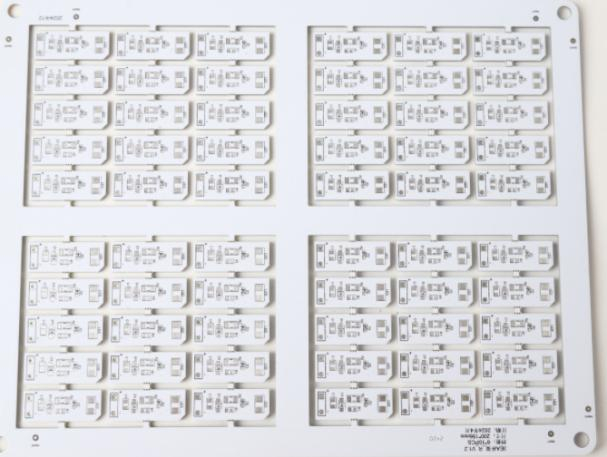

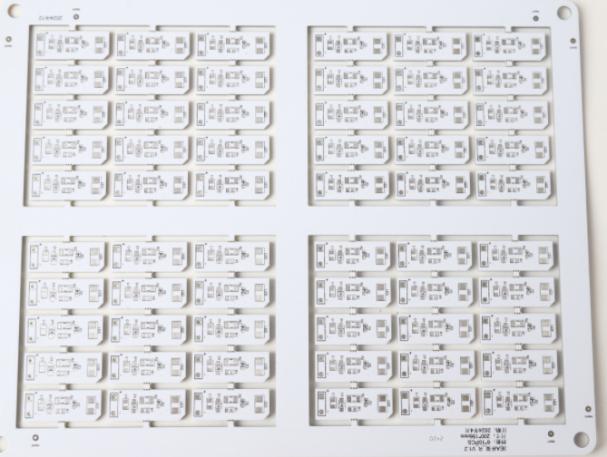

Double sided automotive door PCB circuit board is a high-performance circuit board designed specifically for automotive door control systems, widely used in the field of automotive electronics, especially in door control modules, window lifters, door locks, and safety systems. This circuit board combines reliability, durability, and high efficiency to meet the strict requirements of modern automotive electronic control systems.
Product Features
1. The double-sided PCB design makes circuit wiring more flexible, enabling complex circuit connections in limited space and providing higher functionality
2. Integration degree
3. High temperature and moisture resistance
4. Made of high-temperature and moisture-proof materials, it can work stably under extreme temperature and humidity conditions, adapting to the harsh requirements of automotive environments.
5. Excellent signal integrity
6. Accurate interlayer isolation and optimized signal path design ensure stable transmission of high-frequency signals, reduce interference, and improve system reliability.
7. Resistance to vibration and impact
8. The design meets the standards of the automotive industry and has good resistance to vibration and impact, ensuring the stability and safety of the circuit board during driving.
9. Simplified assembly process
10. Adopting surface mount technology (SMT) and through-hole insertion technology (THT) to make the assembly process more efficient and reduce production costs.
11. Provide multiple surface treatment options, such as HASL (hot air leveling), immersion gold, OSP (organic oxidation prevention treatment), etc., to meet the needs of different customers.
Technical Specifications
Number of layers: 2
Plate thickness: 1.6mm
Board: S1141
Copper thickness: 1OZ
Minimum line width and spacing: 0.2/0.2MM
Minimum aperture: 0.3
Surface treatment: lead-free tin spraying
Process key points: IPC III standard
Application field
Door control module: used to control the opening, locking, and unlocking functions of the car doors.
Electric window lifter: Manage the lifting operation of windows and enhance passenger convenience.
Door safety system: integrated with vehicle safety system, providing safety alarm and monitoring functions.
Rearview mirror adjustment system: used to adjust the electric control of the rearview mirror.
Conclusion
The double-sided automotive door PCB circuit board has become an indispensable component in modern automotive electronic systems due to its excellent performance, reliable durability, and flexible design. It can meet the strict requirements of the automotive industry for high integration, high reliability, and high performance. We are committed to providing customers with high-quality PCB products and services, helping the automotive electronics industry to continuously innovate and develop.
