Product Overview

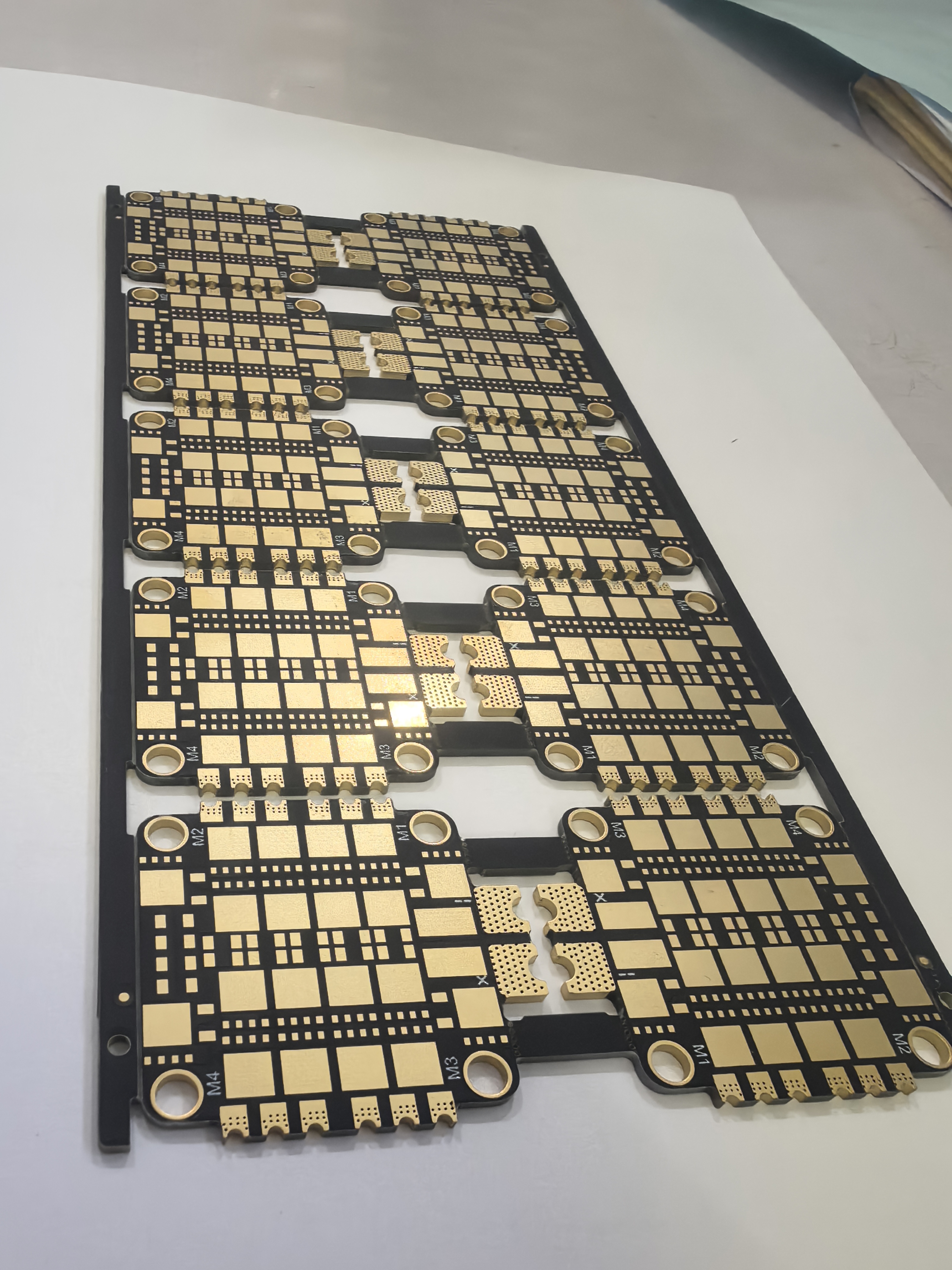

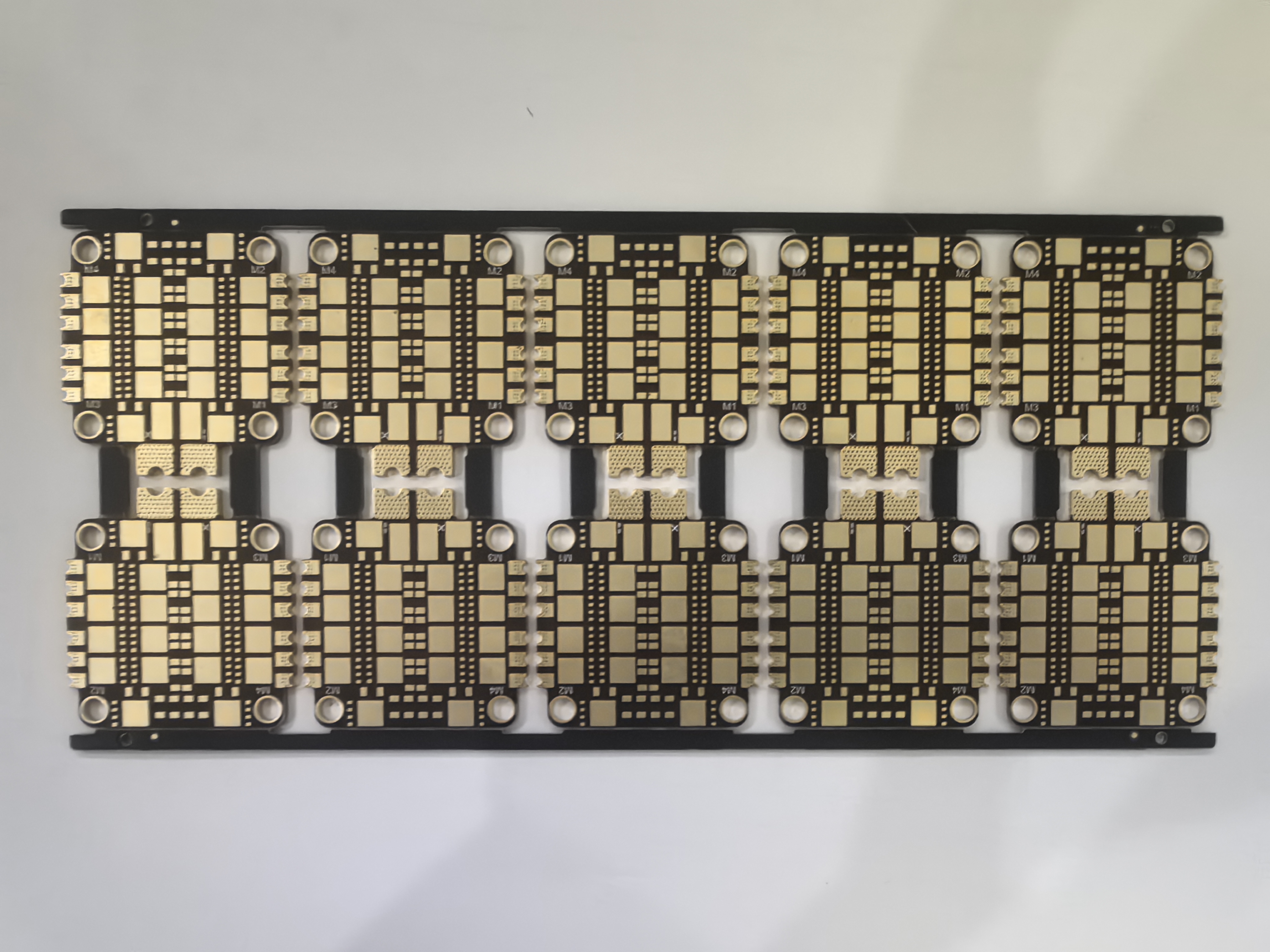

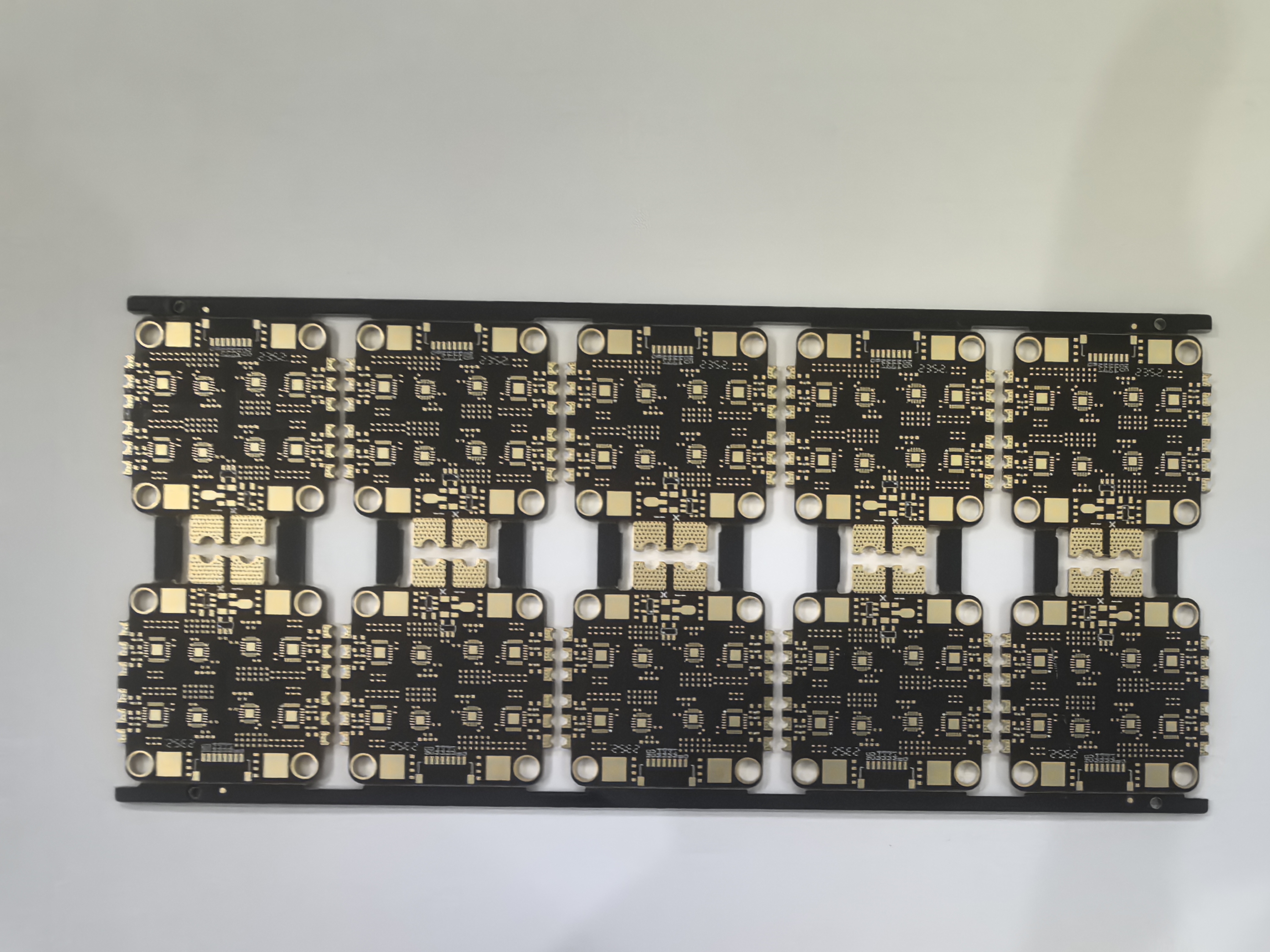

The 6-layer drone PCB is a high-performance printed circuit board designed specifically for drone electronic motherboards. It adopts a 6-layer structure to meet the requirements of complex electronic systems, providing stable signal transmission and excellent electromagnetic compatibility. This PCB has become an ideal choice in the field of drones due to its excellent performance and reliability.
Product Features
1. Multi layer structure design: Adopting a 6-layer PCB design, providing more wiring layers, effectively reducing signal interference, and improving circuit performance.
2. High reliability: Selecting high-quality raw materials to ensure stability and reliability during drone flight.
3. Accurate wiring: Designed with minimum line width/spacing to ensure circuit accuracy and high-speed signal transmission.
4. Environmentally friendly materials: Use environmentally friendly ink to reduce the impact on the environment and comply with international environmental standards.
5. Surface treatment technology: Advanced surface treatment technology is adopted to enhance the corrosion resistance and wear resistance of PCB.
Technical specifications and parameters
number of layers | 6 |
raw materials | High Tg halogen-free FR-4 epoxy resin glass fiber substrate |
thickness | 1.6mm |
copper thickness | 1OZ/35 microns |
| color | black solder mask and white silkscreen |
Minimum line width/line spacing | Line width: 0.1mm, line spacing: 0.1mm |
Is there a solder mask present | Yes, using a black solder mask layer |
Is there a solder mask present | yes |
Surface treatment method | Hot air leveling (HASL), chemical gold (ENIG) |
Application field
1. Universal drone electronic motherboard
2. Military drones
3. Aerospace electronic equipment
4. Product drone
production process
Accurate laser drilling technology: ensuring drilling accuracy and improving the reliability of PCB.
High density interconnect technology (HDI): achieving smaller component spacing and improving the space utilization of circuit boards.
Automated production line: Improve consistency in production efficiency and product quality.
summary
The 6-layer drone PCB, with its excellent multi-layer structure design, high reliability, precise wiring, environmentally friendly materials, and advanced surface treatment technology, has become an ideal choice for drone electronic motherboards. It not only meets the demand of drones for high-performance circuit boards, but also ensures product quality and performance through special production processes. This PCB is a reflection of technological progress in the field of drones, providing a solid foundation for the stable operation and performance improvement of drones.
FQA
1.Q: How far is your factory from the nearest airport?
A: About 30 kilometers
2.Q: What is your minimum order quantity?
A: One piece is enough to place an order.
3.Q: What to do if solder mask overflow affects soldering quality?
A: Solder mask overflow refers to the situation where the solder mask covers the pads or vias that should be exposed, affecting the soldering quality. To address this issue, precise window settings for the solder mask should be made during the design phase and communication with the manufacturer should be confirmed to ensure their process capabilities prevent excessive overflow.
4.Q: What to do if PCB warps or deforms during manufacturing or soldering?
A: Warping and deformation of PCBs during manufacturing or soldering are due to thermal stress, which can affect assembly and functionality. Strategies to mitigate this include selecting appropriate base materials and controlling the uniformity of heating during the process. In some cases, adding stiffeners in the design can reduce the risk of warping.
