Product Overview

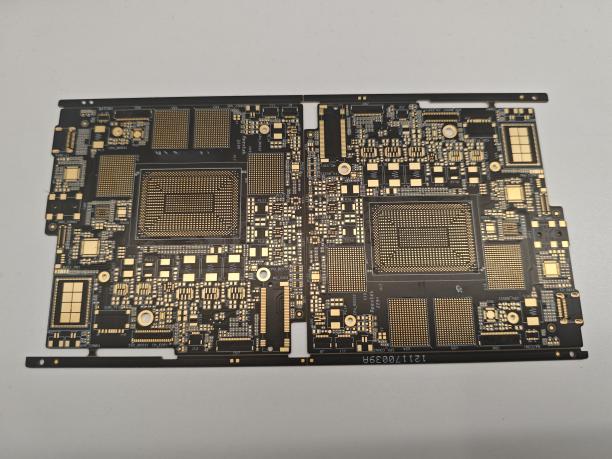

The 14 layers black solder mask advanced server specific PCB is a high-performance printed circuit board designed specifically for advanced server cluster systems. It adopts advanced multi-layer HDI technology and gold deposition surface treatment process, combined with high-performance FR-4 TG-170 substrate, ensuring excellent electrical performance and reliability. This product is widely used in advanced servers that require high-density cabling and high-performance transmission, such as data center servers, high-performance computing servers, etc
Product Features
Ultra high density cabling: 14 layers structural design, achieving smaller line widths and spacing (0.065mm/0.076mm), improving cabling density, and meeting the integration requirements of complex server systems
Excellent electrical performance: The immersion gold surface treatment process provides good conductivity and oxidation resistance, ensuring the stability and reliability of signal transmission
High heat resistance: FR-4 TG-170 substrate has excellent heat resistance and can work stably for a long time in high temperature environments
Exquisite solder mask process: Black oil white character solder mask layer, not only beautiful, but also effectively protects the PCB surface, preventing short circuits and corrosion
High reliability: The 14 layers structural design enhances the mechanical strength and stability of the PCB, ensuring reliability in complex working environments
Technical specifications and parameters
number of layers | 14 |
raw materials | FR-4 TG-170 |
thickness | 1.2mm |
copper thickness | 1 ounce |
solder mask and silkscreen | Black oil white letters |
Minimum line width/line spacing | 0.065mm/0.076mm |
Is there a solder mask present | yes |
Surface treatment method | gold immersion |
Application field
Data Center Server: A motherboard used for high-performance data center servers, supporting complex computing and data processing functions
High performance computing server: suitable for high-performance computing servers, providing high-speed data transmission and processing capabilities
Network communication equipment: such as high-performance routers, switches, etc., to meet the needs of high-speed communication and network connectivity
Industrial automation control equipment: used for the control and data processing of precision industrial automation control equipment, ensuring the stability and reliability of the equipment
Special production process
Multilayer HDI technology: achieving smaller line widths and spacing, improving wiring density, and meeting the integration requirements of complex server systems
Gold deposition process: By electrochemical deposition, a uniform layer of gold is formed on the surface of the PCB, providing excellent conductivity and oxidation resistance
Black oil and white lettering solder mask process: High quality black oil and white lettering ink are used to ensure the beauty and functionality of the solder mask layer
High precision drilling technology: ensures the drilling accuracy and hole wall quality of multi-layer PCBs, meeting complex wiring and connection requirements
Strict quality control: From raw material procurement to production process, strictly control product quality to ensure product reliability and stability
Product Summary
The 14 layers black solder mask advanced server specific PCB is an ideal choice for advanced server cluster systems due to its ultra-high density wiring, excellent electrical performance, high heat resistance, and high reliability. It can not only meet the integration requirements of complex server systems, but also work stably in high temperature environments for a long time, providing a solid foundation for improving server performance and ensuring reliability.
