Product Overview

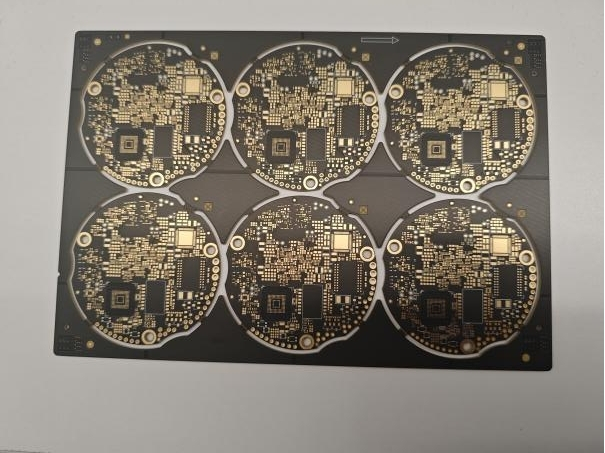

The 16 layers HDI camera video signal processing PCB is designed specifically for processing small camera video signals. This product uses high-performance EM-390 substrate and a thickness of 2.0mm to ensure the mechanical strength and stability of the PCB. The solder mask design with black, oil, and white lettering and the surface treatment with gold plating further enhance the reliability and corrosion resistance of the product, making it suitable for high-density and high-performance video signal processing environments.
Product Features
1. High density wiring: 16 layers design, combined with HDI technology, achieves high-density wiring, suitable for compact design of small cameras.
2. Excellent signal integrity: EM-390 substrate and gold-plated surface treatment ensure high-quality transmission of video signals, reducing signal distortion and interference.
3. Good electrical performance: The 1oz thick inner and outer copper layers ensure low resistance and high current carrying capacity, suitable for high-frequency signal transmission.
4. Excellent mechanical strength: The 2.0mm thickness and black oil white solder mask design enhance the mechanical strength and corrosion resistance of the board.
5. Environmental sustainability: Adopting environmentally friendly materials and processes that comply with international environmental standards.
Technical specifications and parameters
number of layers | 16 |
substrate | EM-390 |
thickness | 2.0mm |
solder mask and silkscreen | Black oil white letters |
surface treatment | gold immersion |
Inner and outer copper thickness | 1oz/1oz |
Line width/line spacing | 0.07mm/0.075mm |
Minimum aperture | 0.1mm |
size | Customize according to customer needs |
| Is there a solder mask present | have |
Application field
Small camera: suitable for security cameras, driving recorders, drone cameras, etc., ensuring high-density and high-performance video signal processing.
Consumer Electronics: A camera module suitable for consumer electronics devices such as smartphones and tablets, providing high-quality video signal transmission.
Medical equipment: suitable for endoscopes, medical cameras, etc., ensuring high-definition and high stability video signal transmission.
Industrial automation: suitable for industrial inspection cameras, machine vision systems, etc., providing high reliability and precision video signal processing.
Special production process
1. HDI technology: Adopting advanced HDI technology to achieve high-density wiring, suitable for compact design of small cameras.
2. Immersion gold surface treatment: Provides low contact resistance and good soldering performance, protects the PCB surface from oxidation and corrosion, and ensures soldering quality.
3. Black oil white character solder mask: enhances the mechanical strength and corrosion resistance of the board, improves product reliability and aesthetics.
4. High precision etching process: Ensure a minimum line width/spacing of 0.07mm/0.075mm to meet high-density wiring requirements and improve circuit integration.
5. Laser drilling technology: Using laser drilling technology to achieve a minimum aperture of 0.1mm, ensuring the reliability of high-density wiring and signal transmission.
Product Summary
The 16 layers HDI camera video signal processing PCB is a high-performance, high-density PCB board designed specifically for processing small camera video signals. Its high-density wiring, excellent signal integrity, good electrical performance, and outstanding mechanical strength make it widely applicable in fields such as small cameras, consumer electronics, medical equipment, and industrial automation. Adopting advanced HDI technology and gold surface treatment to ensure high performance and reliability of the product, it is an ideal choice for modern high-performance video signal processing equipment.
