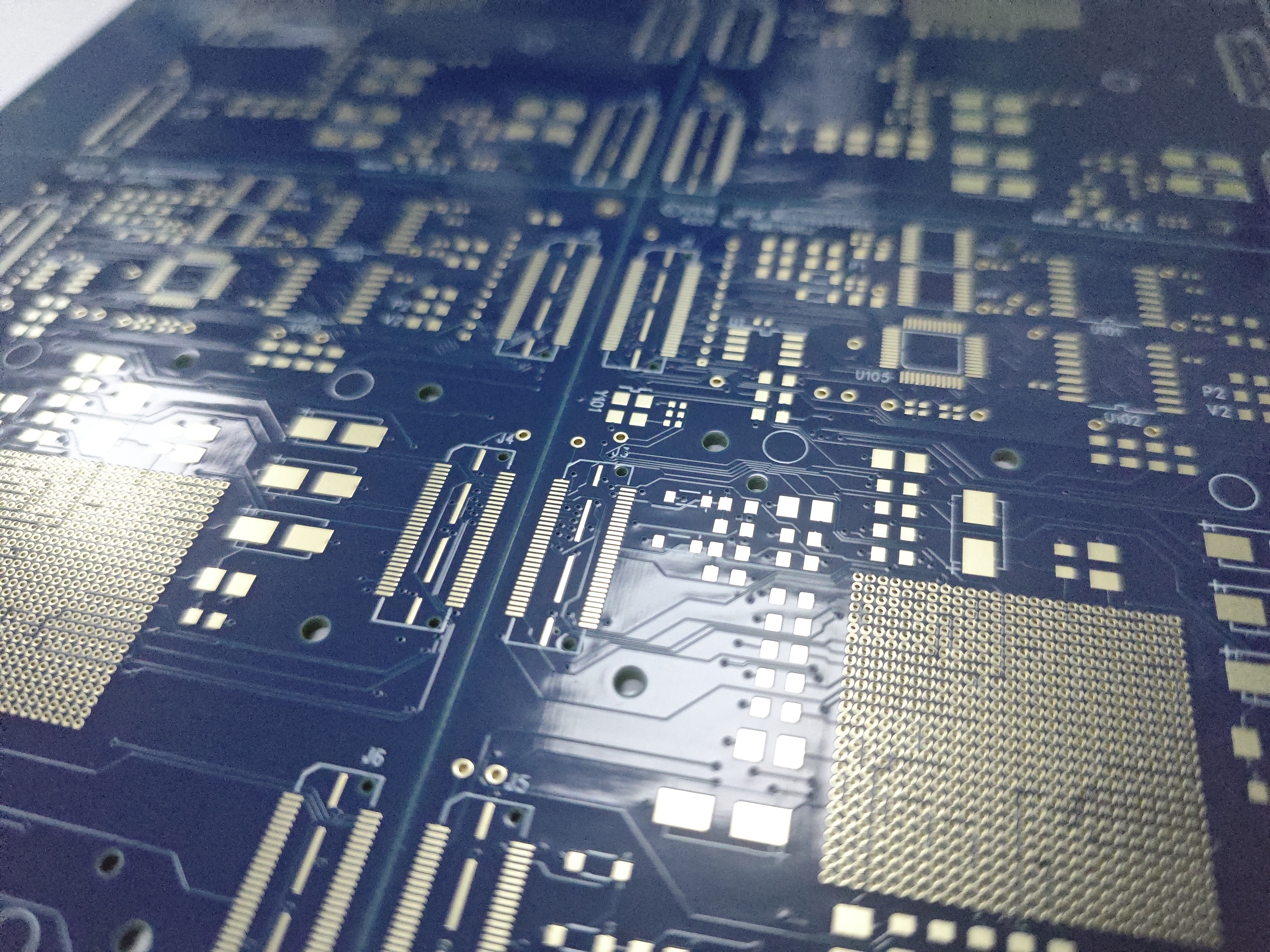

High-performance 4-layer high-frequency and high-speed PCB is a printed circuit board specially designed for high-speed data transmission, suitable for electronic equipment requiring fast and stable data exchange. Adopting advanced manufacturing processes and high-quality materials, this product ensures high speed and stability in signal transmission, serving as an indispensable core component in modern electronic equipment.
High-speed data transmission: Specially designed for high-speed data transmission to ensure fast and stable signals.
Multi-layer structure: 4-layer structural design optimizes signal integrity and power distribution.
High-quality substrate: Made of FR-4 TG170 substrate, delivering excellent electrical performance and mechanical strength.
Precision manufacturing: Blue solder mask with white silkscreen for clear visual identification and protection.
High reliability: Immersion gold surface treatment enhances corrosion resistance and long-term reliability.
Item | Specification |
|---|---|
Number of Layers | 4 layers |
Raw Material | FR-4 TG170 |
Thickness | 1.65mm |
Copper Weight | 1OZ/1OZ |
Ink Color | Blue solder mask with white silkscreen |

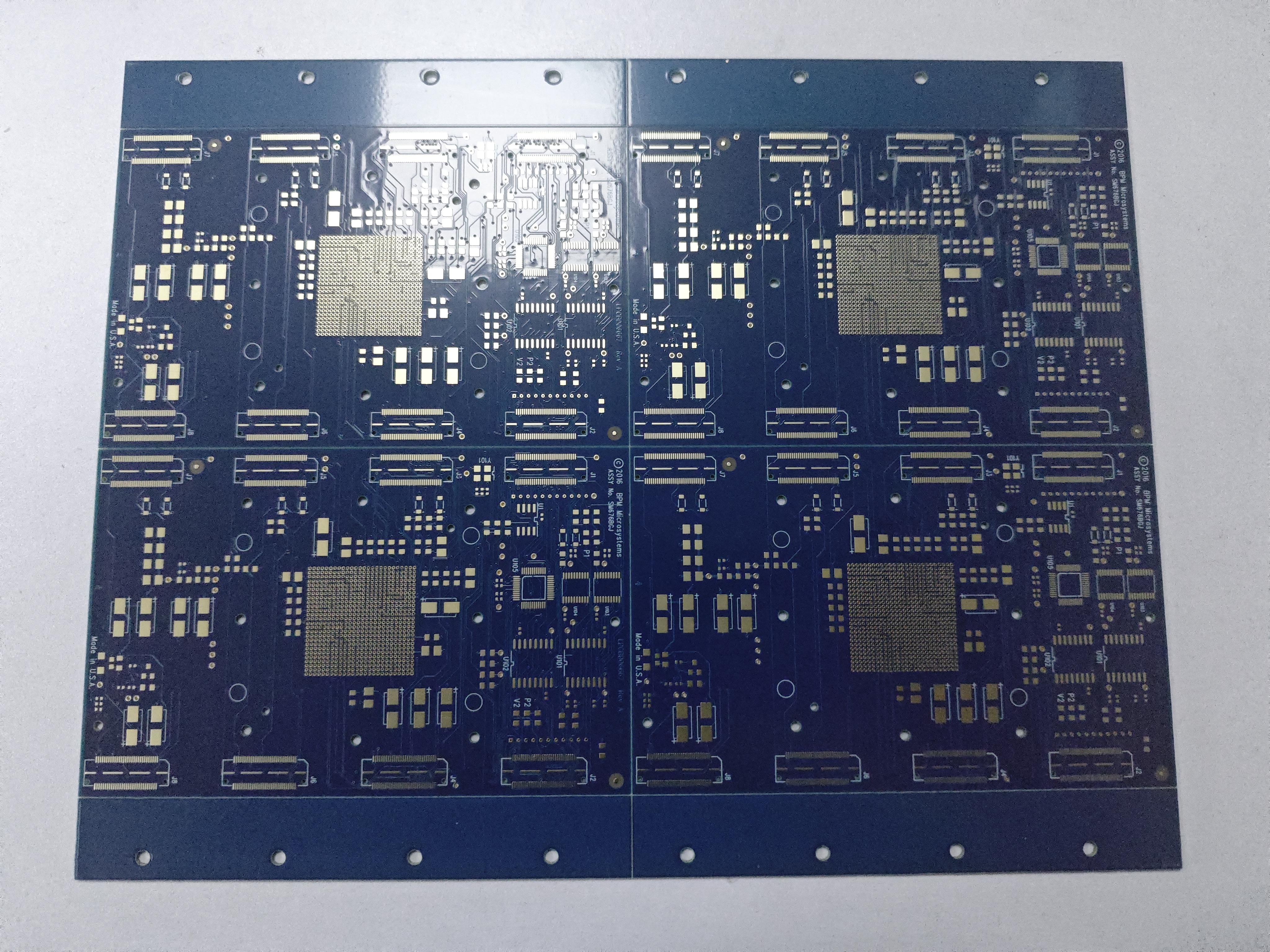

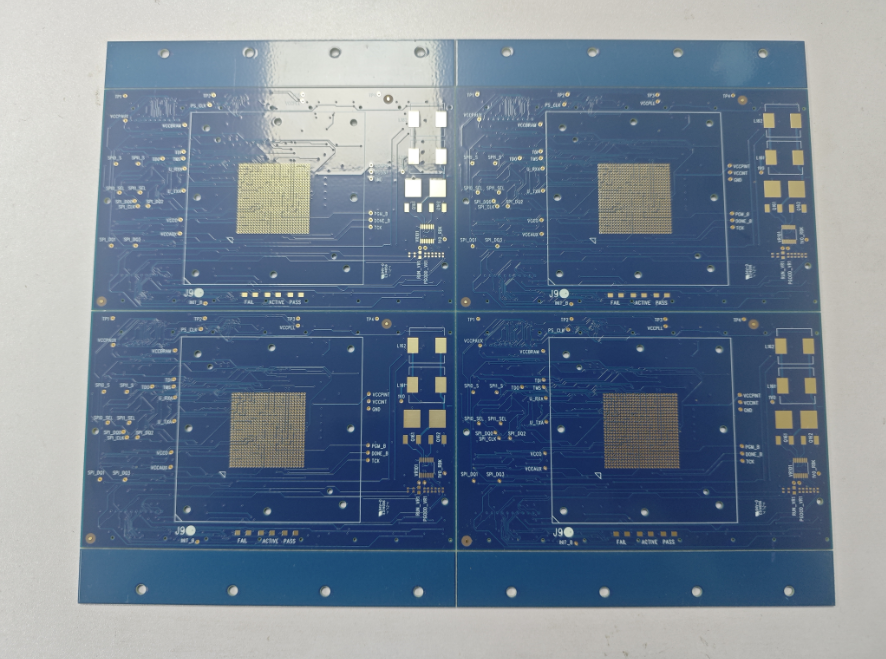

Panel Arrangement | 1 Panel = 2×2 Pcs |
Solder Mask | Blue solder mask with white silkscreen |
Surface Treatment | Immersion gold |
Communication equipment: Base stations, switches, routers, etc.
Computers & servers: Motherboards, storage devices, etc.
Industrial control: Automatic control systems, sensors, etc.
Consumer electronics: Smartphones, tablet PCs, etc.
High-precision manufacturing technology: Ensures accuracy of minimum line width/line spacing and improves signal transmission efficiency.
Lamination technology: Guarantees stability and consistency of the multi-layer structure.
Solder mask technology: Applies blue solder mask with white silkscreen to enhance PCB readability and protection performance.
Immersion gold process: Improves PCB corrosion resistance and soldering reliability.
With outstanding performance and reliability, the high-performance 4-layer high-frequency and high-speed PCB is an ideal choice for high-speed electronic equipment. Our product design takes into account the stringent requirements of modern electronic equipment for speed and stability. By using high-quality materials and advanced production processes, we ensure high performance and long-term durability of the product. Our PCB is your reliable partner whether in communications, computing, industrial control or consumer electronics.
Q: Are the materials you use environmentally friendly?
A: The materials we use comply with RoHS standards and IPC-4101 standards.
Q: When can I get a quotation after I provide Gerber files and product process requirements?
A: Our sales team will provide you with a quotation within 1 hour.
Q: What problems can impedance mismatch in HDI high-frequency PCBs cause?
A: Inconsistency between the impedance of transmission lines on the PCB and the output impedance of the signal source or driver may result in signal reflection, crosstalk and signal integrity issues.
Q: Can you provide samples?
A: We are capable of rapid PCB prototyping and offer comprehensive technical support.
