Product Overview

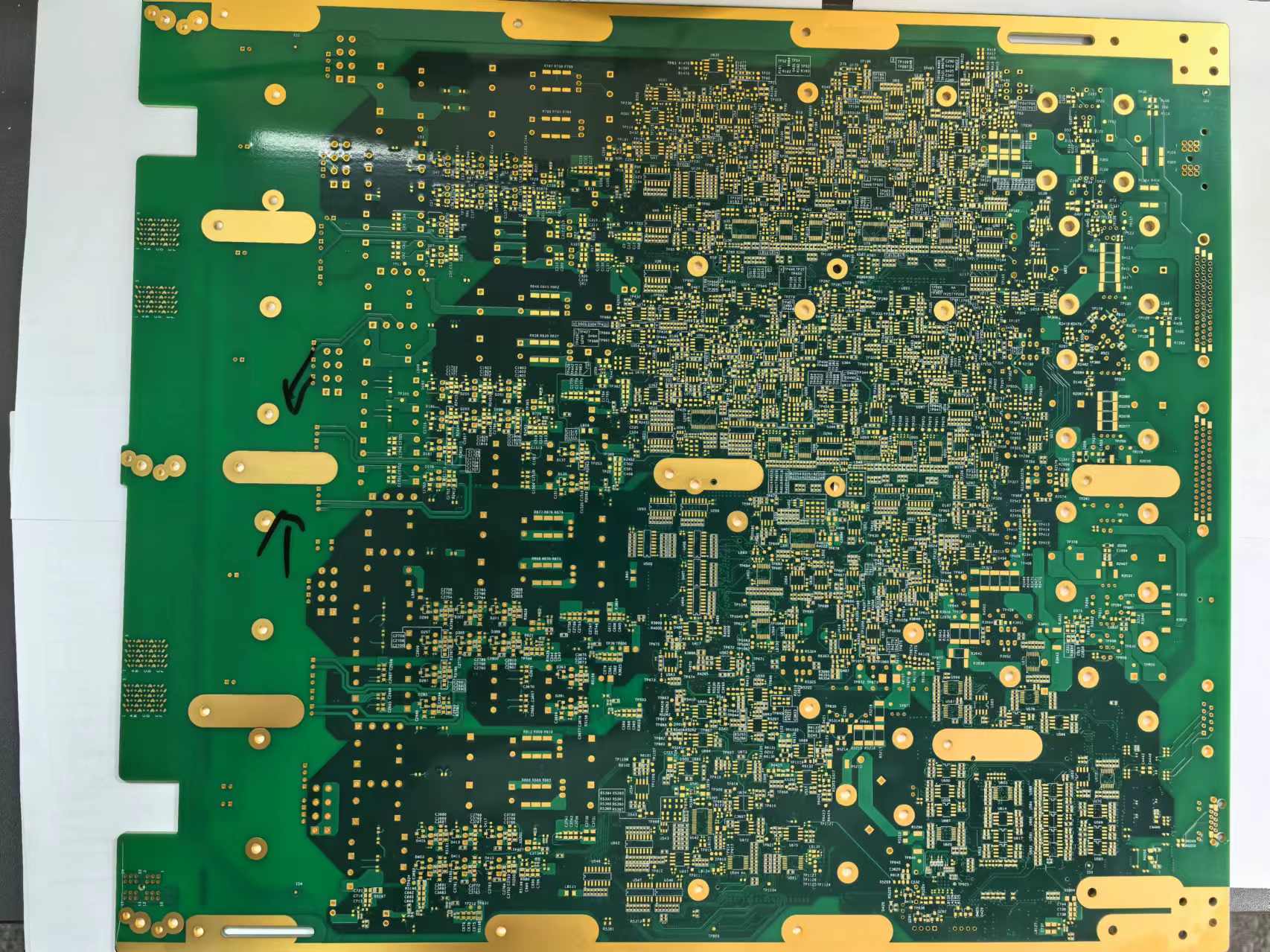

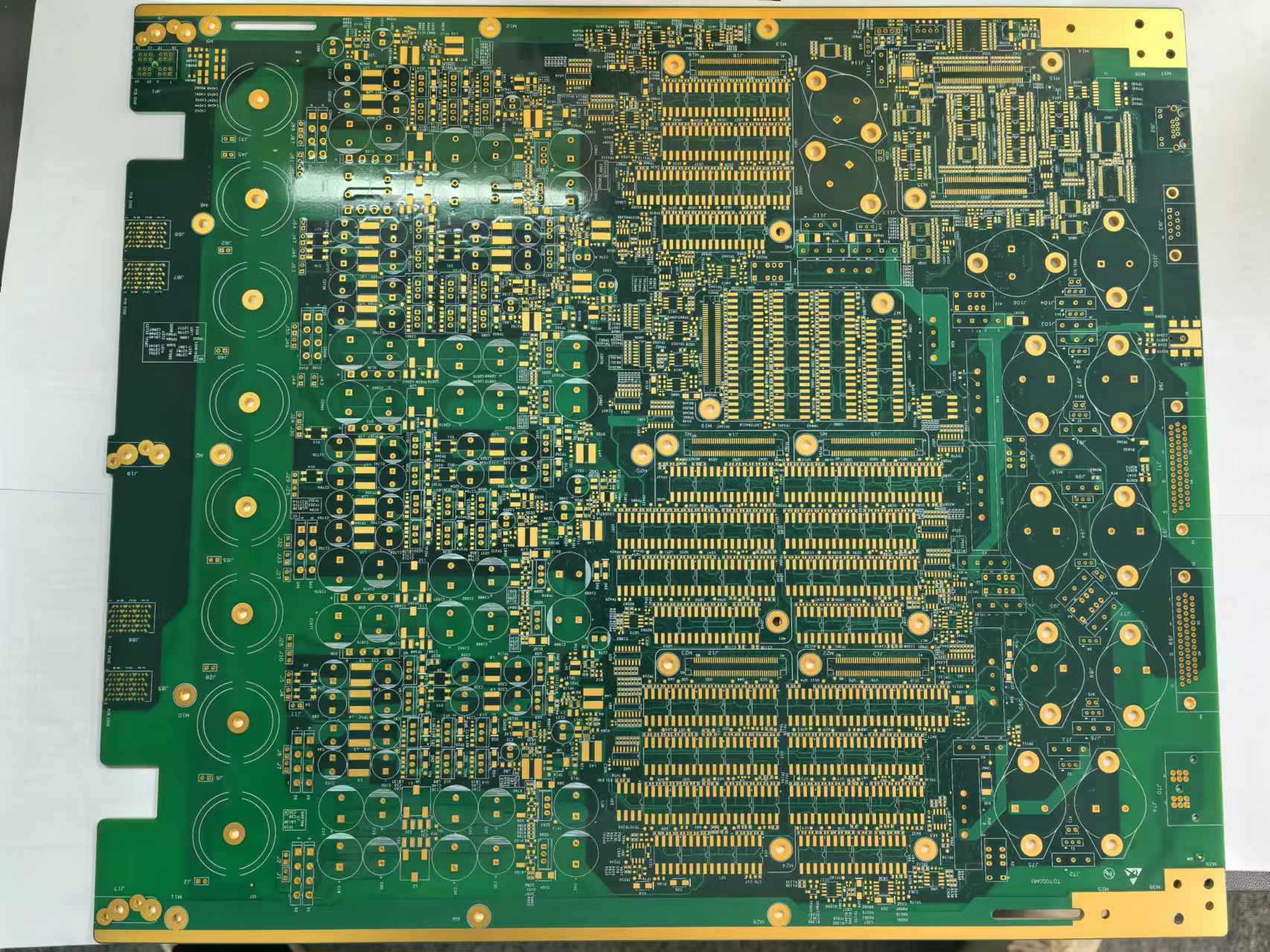

The 12-layer 5G communication circuit board for Huawei is a multi-layer PCB designed specifically to meet the high-performance requirements of future 5G communication networks. Adopting advanced materials and manufacturing processes, it achieves high-speed data transmission, low latency, and highly reliable signal processing. This product is widely used in 5G base stations, antennas, routers, and other communication equipment, serving as a key component of 5G network infrastructure.
Product Features
Excellent High-Frequency Performance:
Uses materials with low dielectric constant (Dk) and low dielectric loss (Df), ensuring signal stability and integrity under high-frequency operation to meet the strict standards of 5G communications.
Multi-Layer Structure Design:
The 12-layer design provides higher wiring density and complex circuit design capability, enabling more efficient management and processing of high-speed signals to adapt to diverse application requirements.
Outstanding Heat Dissipation Performance:
Adopts optimized thermal management design to ensure effective heat dissipation in high-power operating environments, prolonging service life and improving system stability.
High Reliability:
Undergoes strict quality control and testing to ensure reliability under various harsh environmental conditions, suitable for long-term use.
Strong Anti-Interference Capability:
Designed with electromagnetic compatibility (EMC) in mind. Excellent electromagnetic shielding and signal isolation reduce external interference and improve communication quality.
Lightweight & Compact Design:
Uses advanced materials and design concepts to optimize weight and volume, facilitating integration into various compact communication devices.
Technical Specifications
Layers: 12 layers
Materials: FR-4, SY1000-2
Thickness: 2.0 mm
Copper Thickness: Inner 0.1 oz / Outer 1 oz
Solder Mask Color: Green solder mask with white text
Minimum Line Width / Line Spacing: 0.075 mm / 0.075 mm
Solder Mask: Yes
Surface Treatment: Immersion Gold + Electroplated Thick Gold 30 μ"
Application Fields
5G Base Stations: As a core component of base stations, supporting RF modules, signal processing units, and power management.
Antenna Systems: Used for transmission and reception of high-frequency signals to ensure strong signal coverage.
Network Equipment: Routers, switches, etc., supporting high-speed data transmission and processing.
IoT Devices: Providing a stable communication foundation for smart devices and Internet of Things applications.
Production Process
Precision Etching & Laser Drilling: Ensures the accuracy of high-density interconnect (HDI) design to meet complex circuit layout requirements.
Multi-Layer Lamination Technology: Uses high-temperature and high-pressure processes to bond multi-layer materials, ensuring electrical performance and mechanical strength.
Surface Treatment: Supports various surface treatments such as Electroless Nickel Immersion Gold (ENIG), Hot Air Solder Leveling (HASL), etc., to improve soldering reliability and corrosion resistance.
Conclusion
With its outstanding performance, reliability, and broad application prospects, the 12-layer 5G communication circuit board for Huawei has become an indispensable part of modern 5G communication equipment. It shows significant advantages in signal transmission, thermal management, and anti-interference capability, supporting the rapid development and wide deployment of 5G technology.
