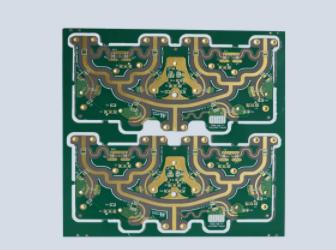

Iron furnace high-frequency PCB circuit board is a printed circuit board designed specifically for high-frequency applications, widely used in fields such as communication, radar, satellite, medical equipment, etc. This product has excellent electrical performance and thermal stability, which can meet the needs of high-frequency signal transmission.
Product Features
1. High frequency performance
2. The design supports high-frequency signal transmission, with a frequency range of several tens of GHz, suitable for high-frequency applications such as 5G and Wi Fi 6.
3. High quality substrate
4. Use materials with low dielectric constant and low loss (such as PTFE, ceramic substrates, etc.) to effectively reduce signal attenuation and reflection.
5. Iron cost furnace process
6. Adopt iron furnace welding technology to ensure that the welding points are firm and suitable for long-term use in high-temperature environments.
7. Excellent thermal stability
8. The design takes into account thermal management and is able to maintain stable performance under high-power operating conditions.
9. Precision manufacturing
10. Adopting advanced manufacturing technology to ensure high circuit accuracy and suitability for complex circuit design.
Application Fields
Wireless communication equipment
Used for base stations, routers, wireless transmission modules, etc.
Radar and satellite communication
Applied to high-frequency applications such as radar systems and satellite communication equipment.
medical equipment
Suitable for high-frequency medical imaging equipment, monitoring instruments, etc.
Automotive Electronics
Used for in vehicle communication systems, autonomous driving sensors, etc.
Technical Specifications
Number of layers: 2
Plate thickness: 0.6mm
Materal: Teflon polytetrafluoroethylene
Minimum aperture: 0.8mm
Minimum line width/spacing: 0.12mm
Outer copper thickness: 1OZ
Surface treatment: immersion gold
Design and Manufacturing Process
1. Requirement analysis
2. Communicate with customers to understand product requirements and technical specifications, ensuring that the design meets high-frequency standards.
3. Circuit design
4. Use professional software for circuit design, optimize signal paths, and reduce interference.
5. PCB layout
6. Conduct high-frequency layout, arrange the position of circuit components reasonably, and ensure signal integrity.
7. Production and manufacturing
8. Use iron furnace welding technology for PCB production to ensure welding quality.
9. Testing and Verification
10. Conduct strict electrical performance testing and environmental adaptability testing on finished products to ensure compliance with design requirements.
summary
The high-frequency PCB circuit board of the iron furnace is a key component for achieving high-frequency signal transmission. With its superior performance and wide application prospects, it has become an indispensable part of modern electronic devices. We are committed to providing customers with high-quality products and professional technical support to meet the constantly evolving high-frequency market demands.
