Product Overview

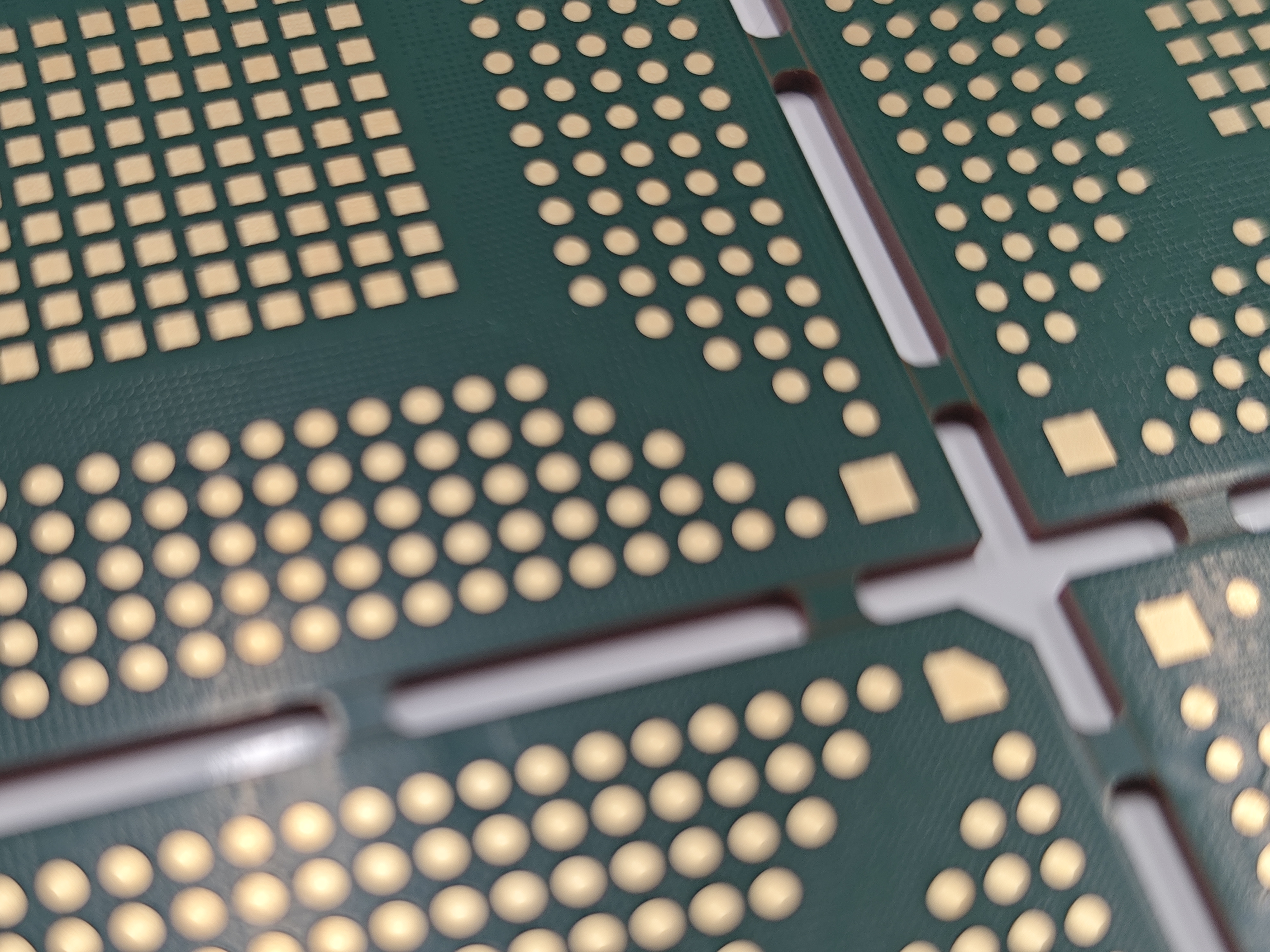

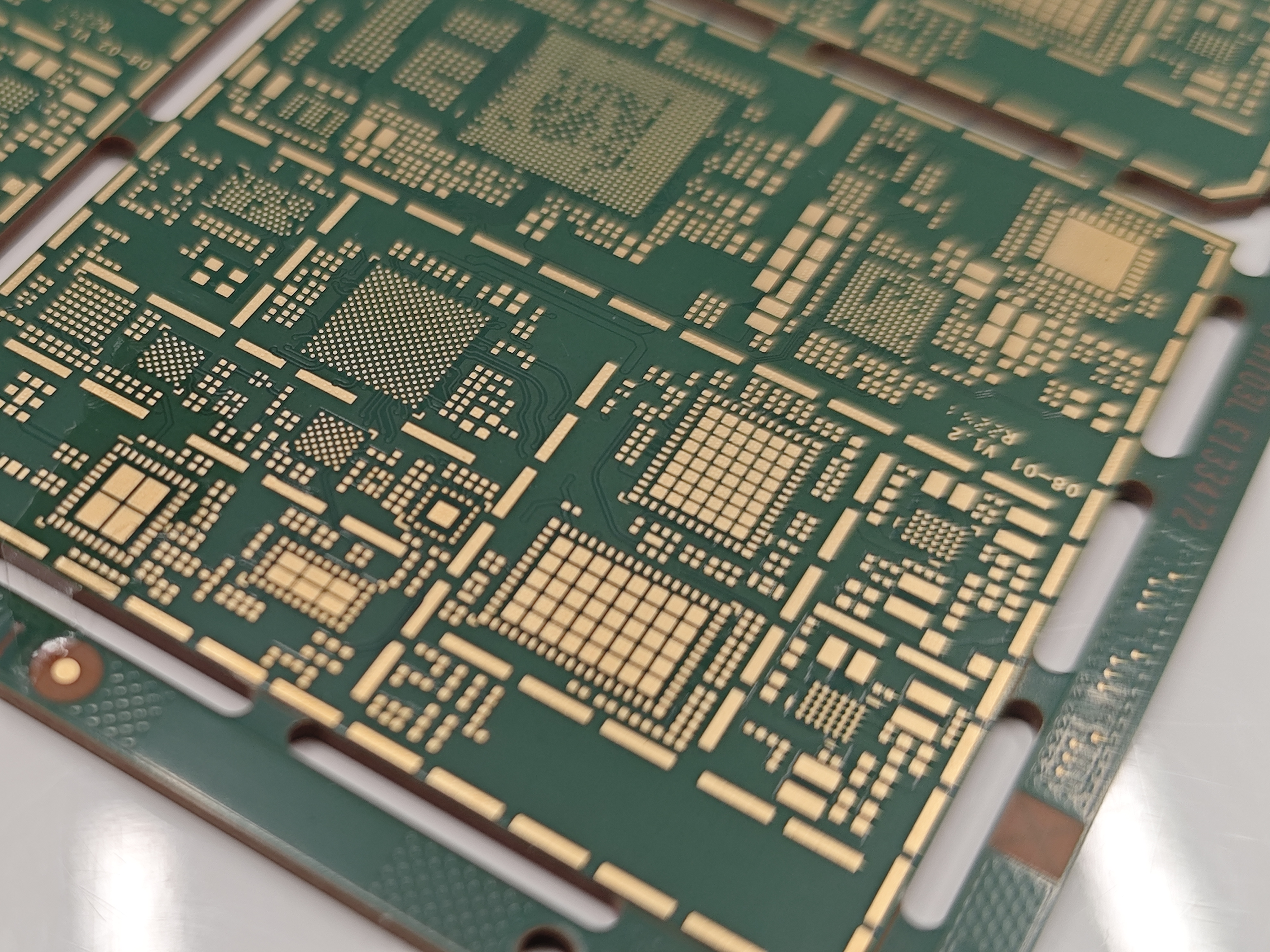

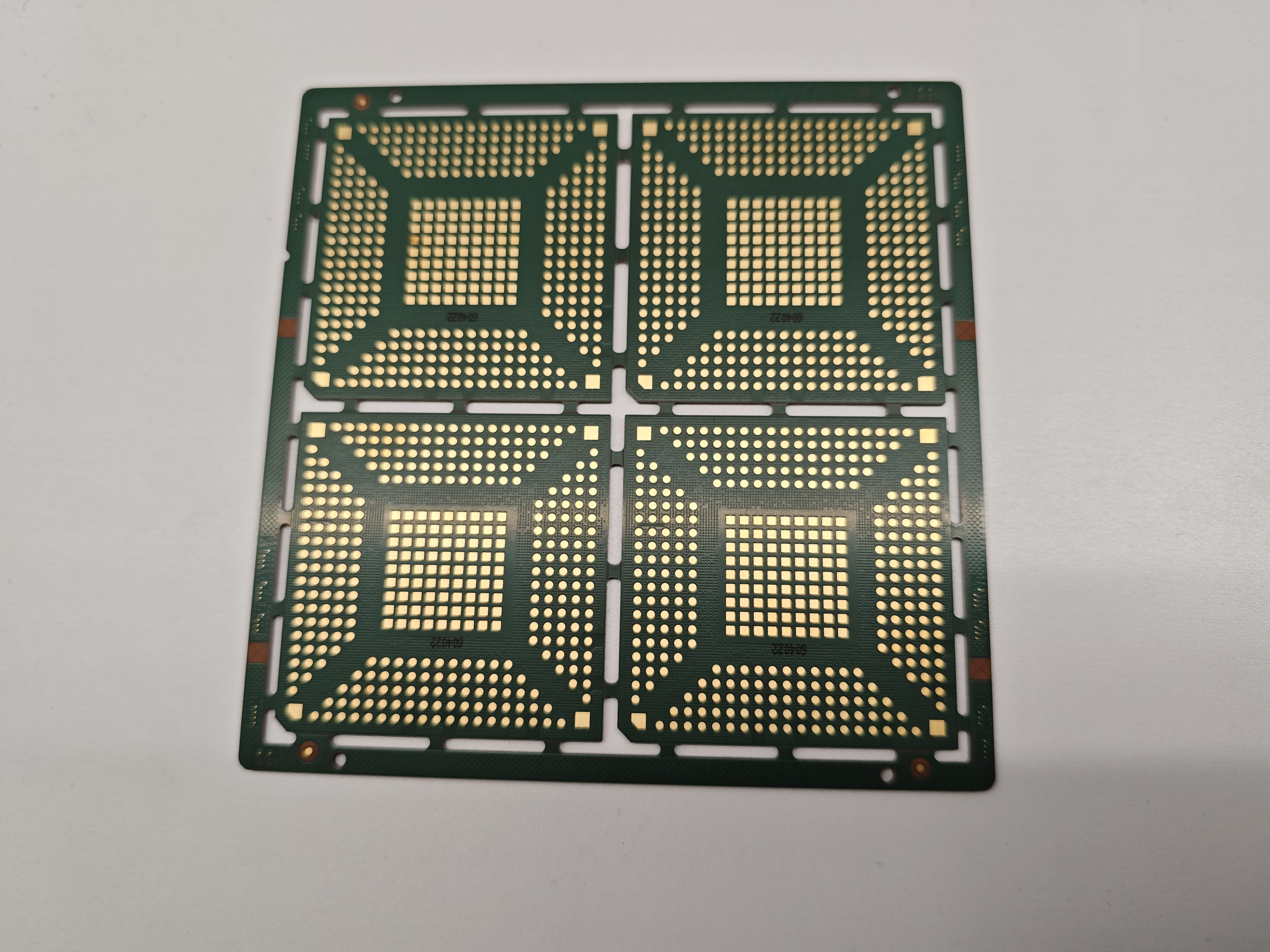

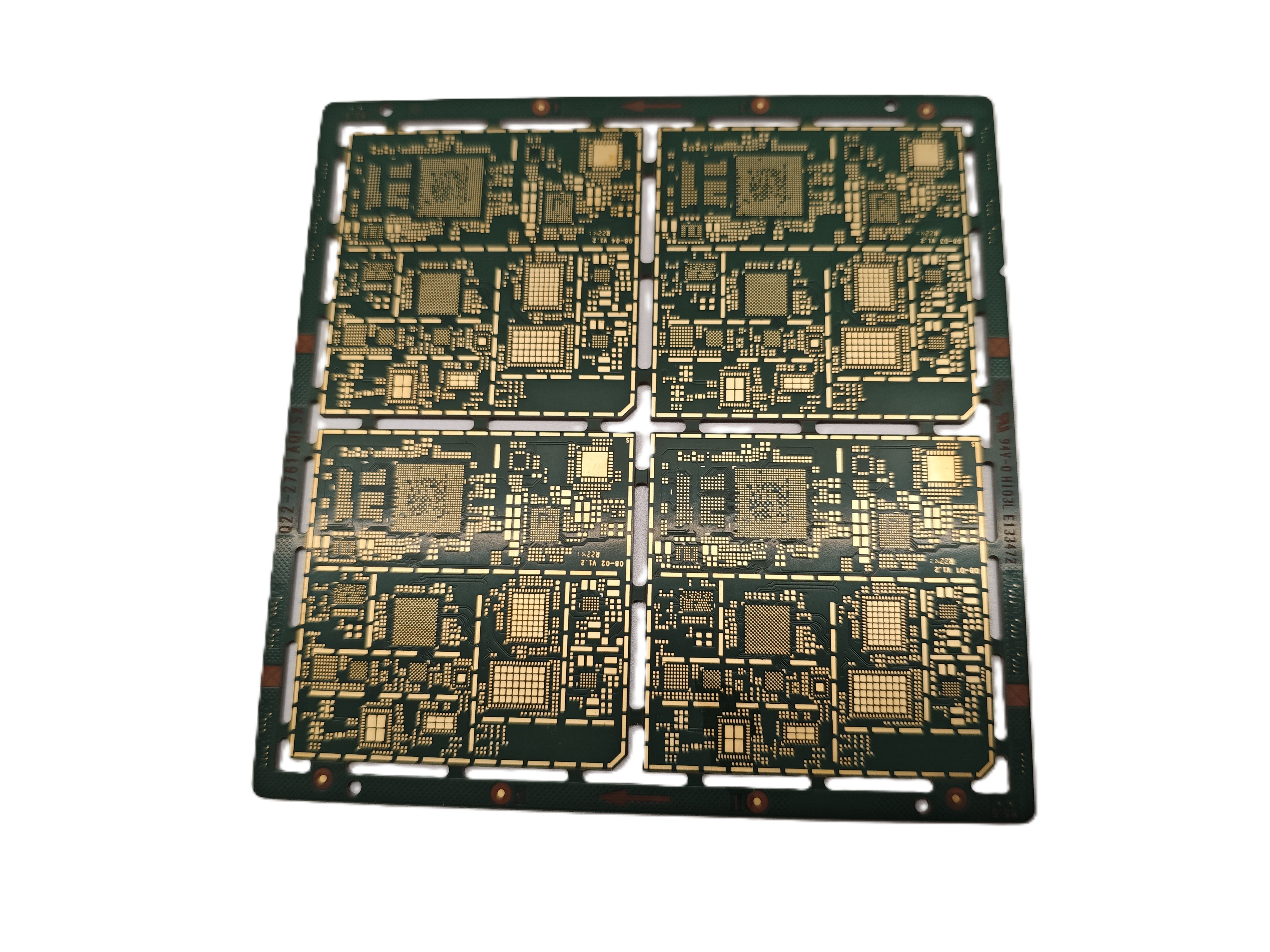

The "12 layer second-generation communication receiving system dedicated AC PCB" is a high-performance printed circuit board designed specifically for second-generation signal receiving terminals in communication systems. Compared with the first generation signal receiving terminal, this product has achieved significant improvements in durability and signal transmission stability, meeting the strict requirements of modern communication equipment for high speed, high density, and high reliability.
Product Features
High reliability: Using high-quality FR-4 substrate and advanced production technology, the product ensures long-term stable operation in complex environments.
Stable signal transmission: With a 12 layer structural design and precise line width/spacing control (0.05mm/0.08mm), it effectively reduces signal interference and improves signal integrity.
Strong durability: The 1U surface treatment process of immersion gold provides good electrical connection and anti-corrosion performance, extending the service life of PCB.
High density wiring: The minimum aperture is only 15 μ m, achieving higher wiring density and meeting the requirements of complex circuit design.
Good heat dissipation performance: A reasonable multi-layer structure design helps to evenly distribute heat and ensure the stability of the equipment during high load operation.
Technical Specifications

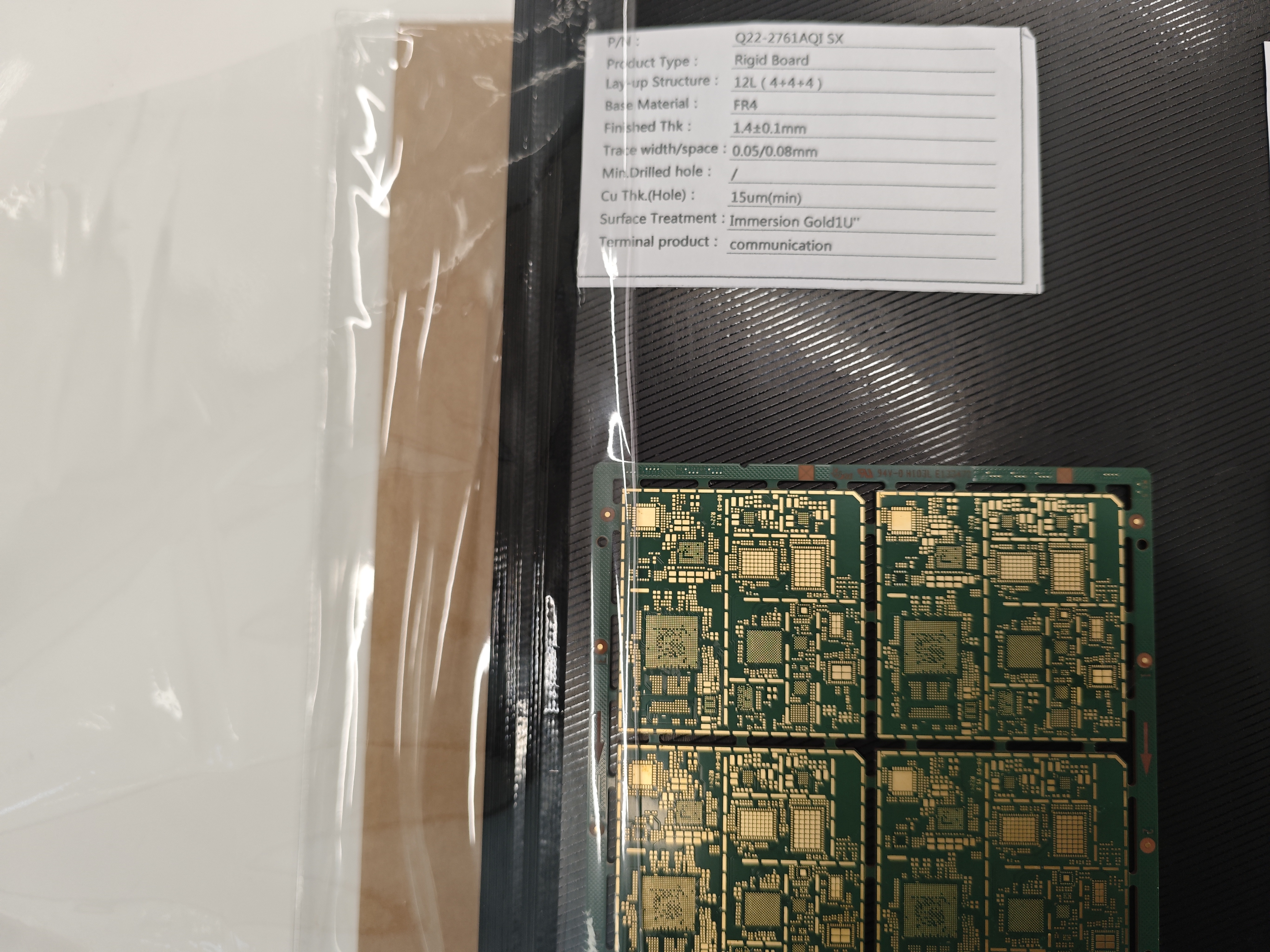

number of layers | 12 |
substrate | FR-4 |
thickness | 1.4mm |
solder mask and silkscreen | Green and white |
Minimum line width/line spacing | 0.05mm/0.08mm |
Is there a solder mask present | have |
Surface treatment method | Sinking Gold 1U |
Application Areas
Communication base station: used for signal reception and processing of wireless communication base stations such as 5G and 4G, ensuring high-speed data transmission.
Satellite communication: In satellite communication equipment, high-precision signal reception and conversion are achieved.
Industrial Control: Suitable for signal reception and control modules in industrial automation equipment.
Automotive electronics: used for signal reception and processing in automotive electronic systems, such as intelligent driving assistance systems.
The special production process adopted
1. Immersion gold process: provides good electrical connection, anti-corrosion and welding performance, ensuring the stability and durability of signal transmission.
2. High precision drilling and electroplating process: Ensure precise machining of small hole diameters (15 μ m) and high-quality electroplating of hole walls.
3. Multi layer lamination process: Accurately control the lamination accuracy of the 12 layer board to ensure interlayer alignment and electrical performance.
Product Summary
The "12 layer second-generation communication receiving system dedicated AC PCB" provides an ideal signal receiving solution for modern communication systems with its excellent performance and reliability. It not only meets the requirements of high-speed and high-density data transmission, but also ensures long-term stable operation through advanced production processes and high-quality materials. Whether in the fields of communication base stations, satellite communication, or industrial control, this product can provide a solid guarantee for the efficient operation of equipment.
